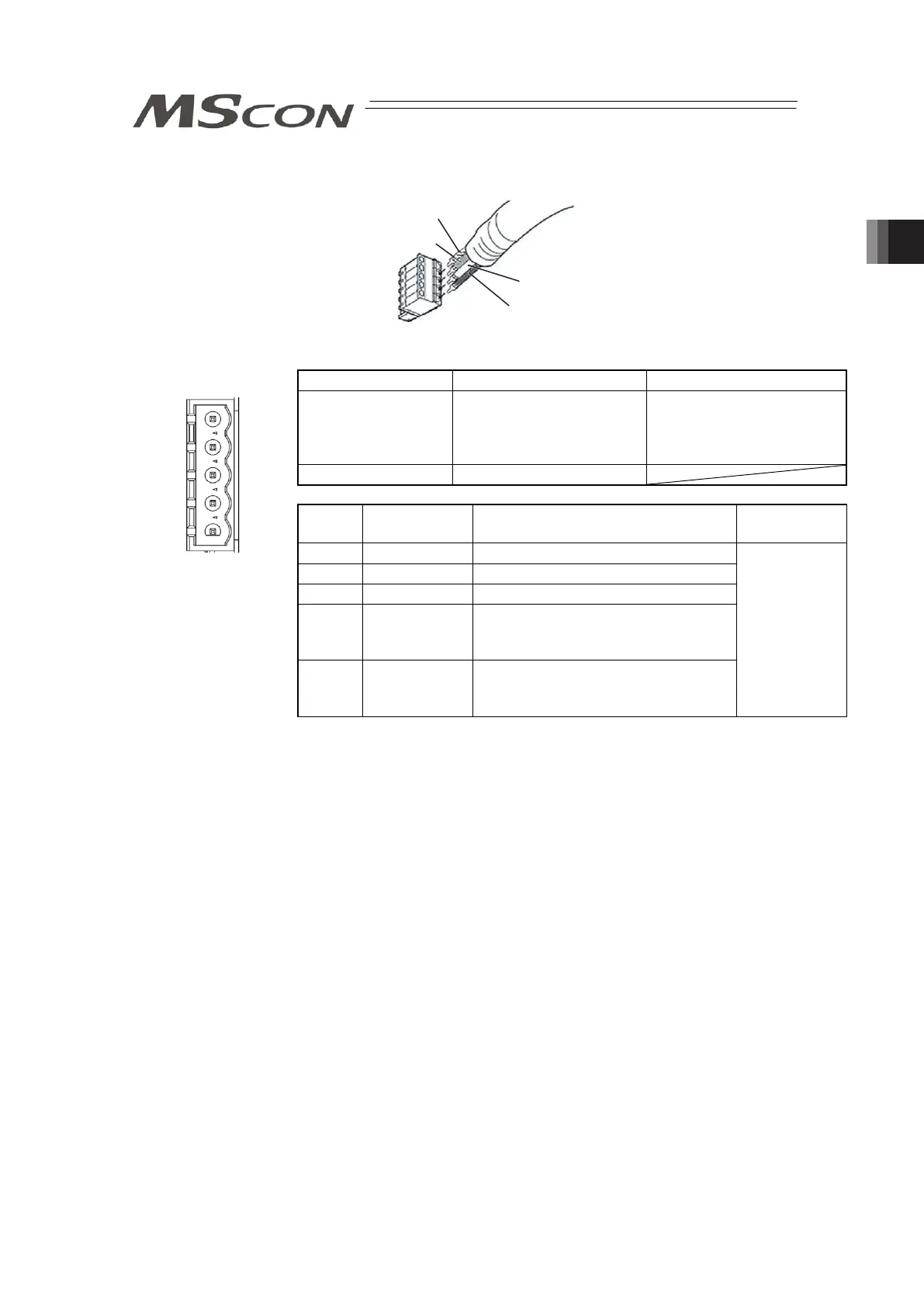

2) CC-Link Type
WT (DB)
BL (DA)
Shield (SLD)
YW (DG)
CC-Link Connector Model Remarks
Cable Side SMSTB2.5/5-ST-5.08 AU Enclosed in standard
package
Manufactured by PHOENIX
CONTACT
Controller Side MSTBA2.5/5-G-5.08 AU
Pin No.
Signal Name
(Color)
Contents
Applicable
Cable
1 DA (BL) Communications Line A
2 DB (WT) Communications Line B
3 DG (YW) Digital GND
4 SLD
Connect the shield of the shielded
cable (Connect the FG of the 5 pins
and controller FG internally)
5 FG
Frame Ground
(Connect the SLD of the 4 pins and
controller FG internally)
CC-Link
Dedicated
Cable
(Note): Connect a terminal resistor (121Ω) between DA and DB to the
end of the network. [Refer to 2.2 [8] Field network Circuit (For
Field network Type)]
Front view of
connector on
controller side
DA
DB
SLD
FG
DG
