Chapter 10 Appendix
POWER CON
PCON-CB/LC
246

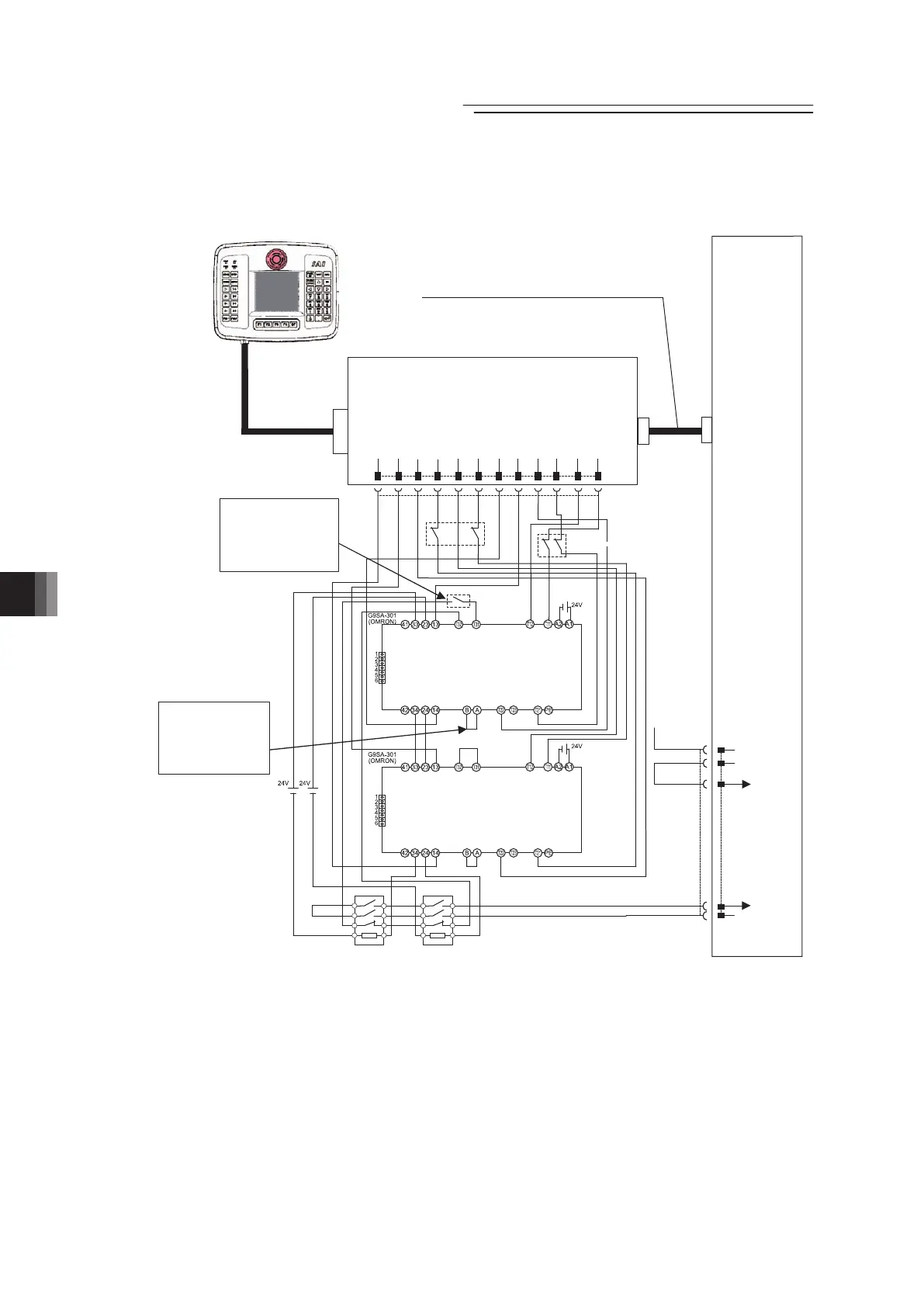

3) In case of category 3 or 4
Connection Cable CB-CON-LB□□□
Controller
● PCON
ENBOUT ENBIN ENB2+ ENB2- ENB1+ ENB1- EMGOUT EMGIN EMG2+ EMG2- EMG1+ EMG1-
RCB-LB-TGS
Motor
Power
Supply
12 11 10
9 8 7 6 5 4 3 2 1
Solenoid Contactor Solenoid Contactor
Enable SW
Reset SW
Emergency Stop SWEmergency Stop SW
For Category 4, insert
Reset Switch as shown
in the diagram.
For Category 3, layout
the wiring without
inserting Reset Switch.
For Category 4, make
the connection of A
and B open.
For category 3, make
a short circuit
between A and B.
EMG-
S2
S1
24V
MPO
MPI
TB-02D, TB-01D(R), CON-PGAS
(or Dummy plug : DP-4S)
