HEAD
LOAD
During
a
read/write
operation
(acti-
vated),
the
diskette
is
forced
against
the
read/write
head
by
the
head
load
arm.
In
the
de-activated
position,
the
head
load
arm
is
held
away from
the
diskette
by
the
head
load
bail
&ssembly
(Figure
7-9).
The
head
load
Bail Return
Spring

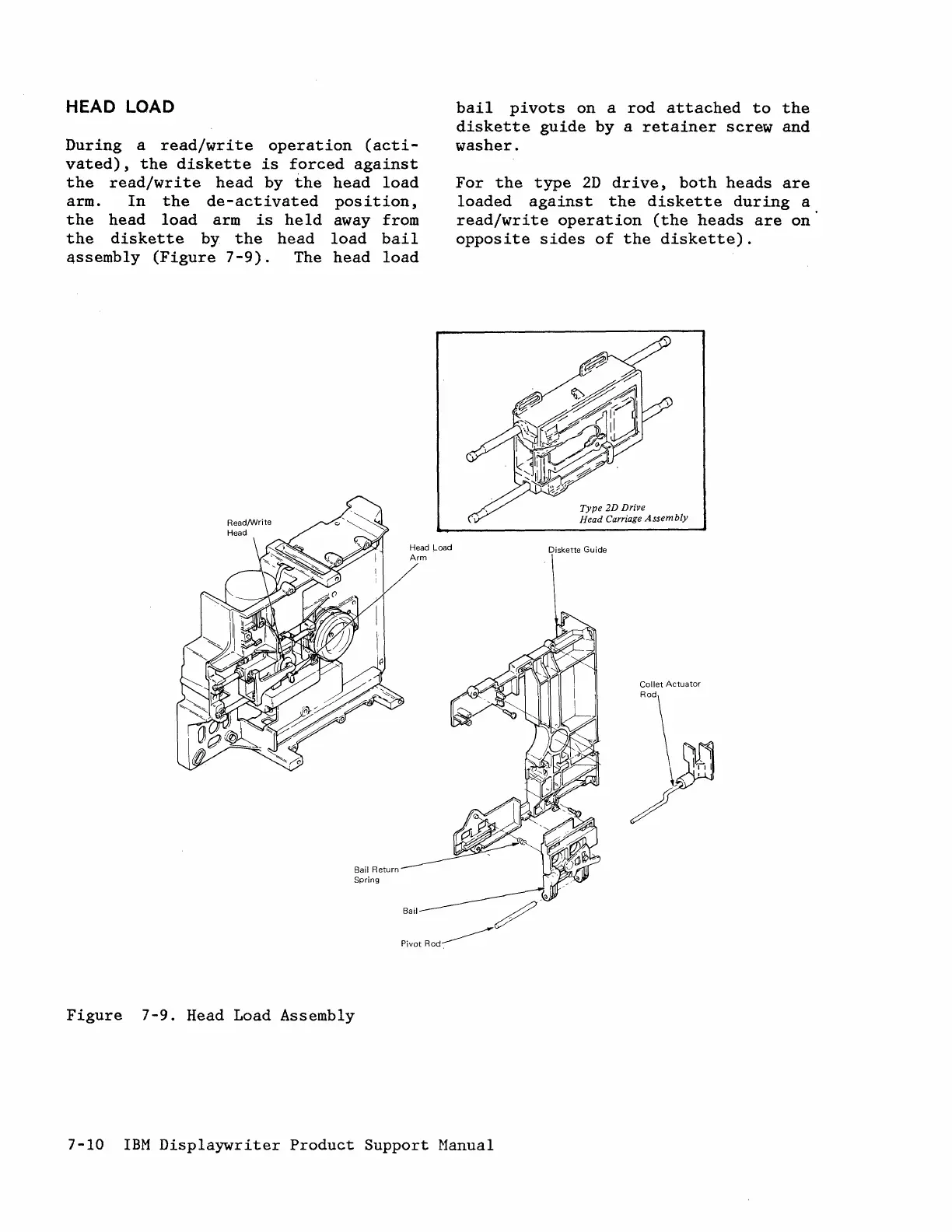

Figure
7-9.
Head Load Assembly
Head Load
Arm
bail
pivots
on a
rod
attached
to
the
diskette
guide
by
a
retainer
screw
and
washer.
For
the
type
2D
drive,
both
heads
are
loaded
against
the
diskette
during
a
read/write
operation
(the
heads
are
on
opposite
sides
of
the
diskette).
Type
2D Drive
Head Carriage
Assembly
Diskette Guide
Collet
Actuator
7-10
IBM
Displaywriter
Product
Support Manual
