IBM 6360 User Manual

DANGER:
Be
extremely careful when working
near the neck of the CRT. The CRT
may burst inward (implode) if
broken.
Display Analog Card Removal
1. Turn the system power off.
2. Perform the rear cover removal.
3. Disconnect the J301, J302, J501,
and J502 connectors from the ana-
log card Ct. (See Figure 4-20.)
4. Cut the cable tie (if present)
holding the ground wire to the
analog card cover. (Cable tie
does not need to be replaced; it
is for shipping only.)
5. Remove the two screws • that
hold the analog card and ground
strap to the mainframe.
CAUTION:
Do not touch the heat sink on the
back of the analog card. It may
be
HOT.
6. Unseat the analog card by lifting
the card removal levers •.
7. Carefully slide the analog card
• up and out of the card guides.

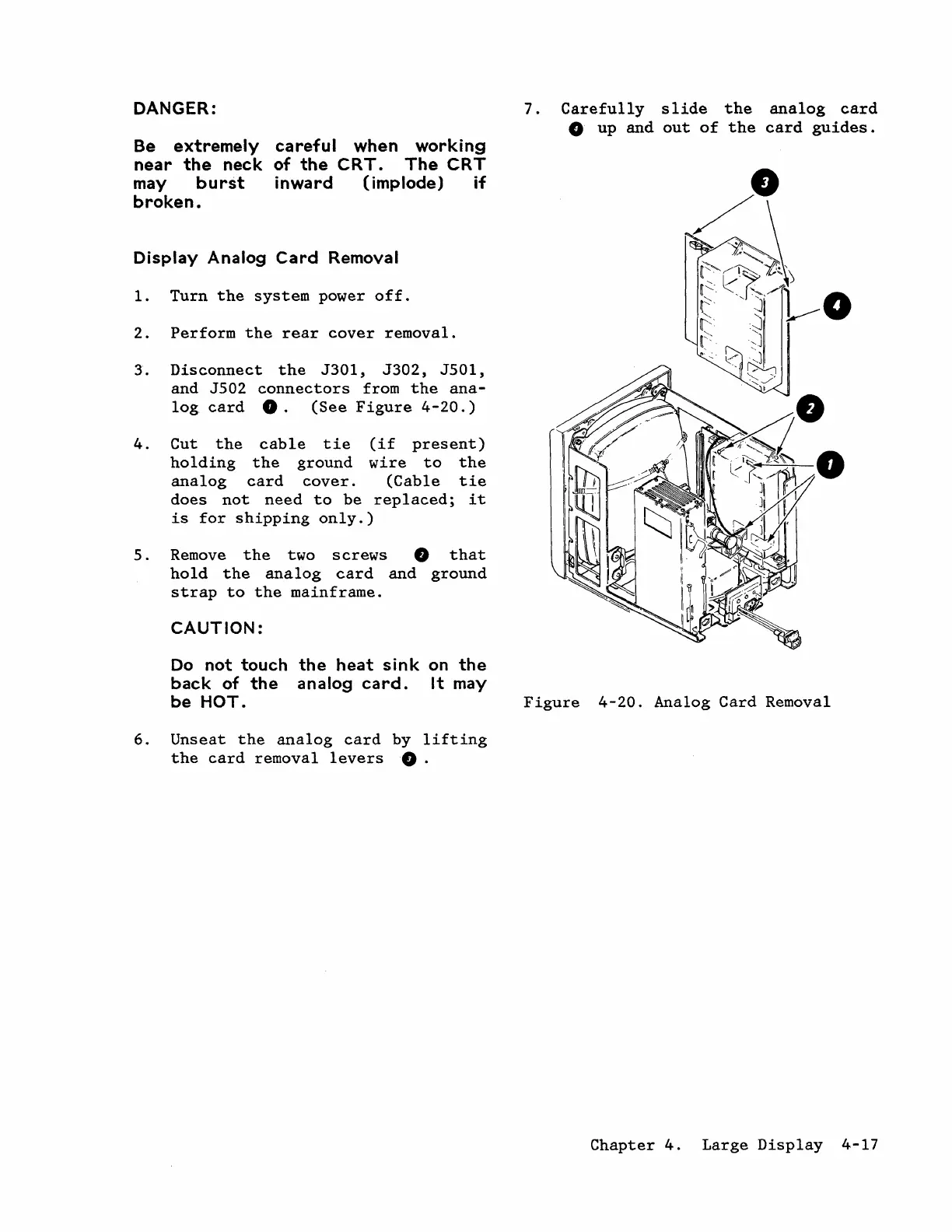

Figure 4-20. Analog Card Removal
Chapter 4. Large Display 4-17
