Rear Cover Removal
1.
Turn
the
system
power
off.
2.
Release
the
quarter-turn
cover
fasteners
in
the
back
of
the
dis-
play
module.
(See
Figure
4-19.)
3.
Slide
the
cover
to
the
rear
to
remove.
4.
Always
check
to
ensure
the
ground
spring
around
the
CRT
is
in
place,
and
that
it
is
connected
to
the
CRT
socket,
before
performing
any
type
of
service.
(See
Figure
4-10.)

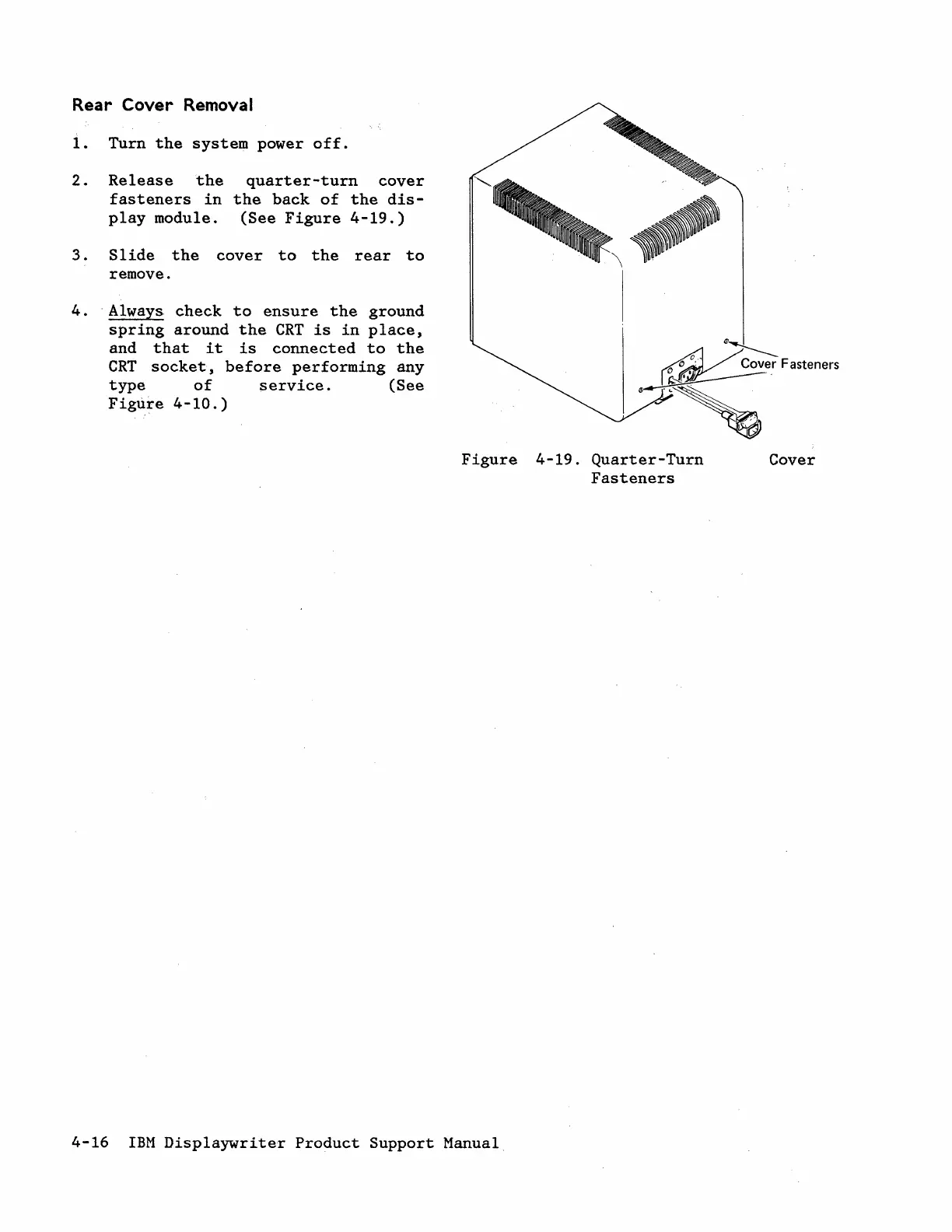

Figure
4-19.
Quarter-Turn
Fasteners
4-16
IBM
Disp1aywriter
Product
Support
Manual
Fasteners
Cover
