IBM 6360

LARGE DISPLAY
REMOVALS/REPLACEMENTS

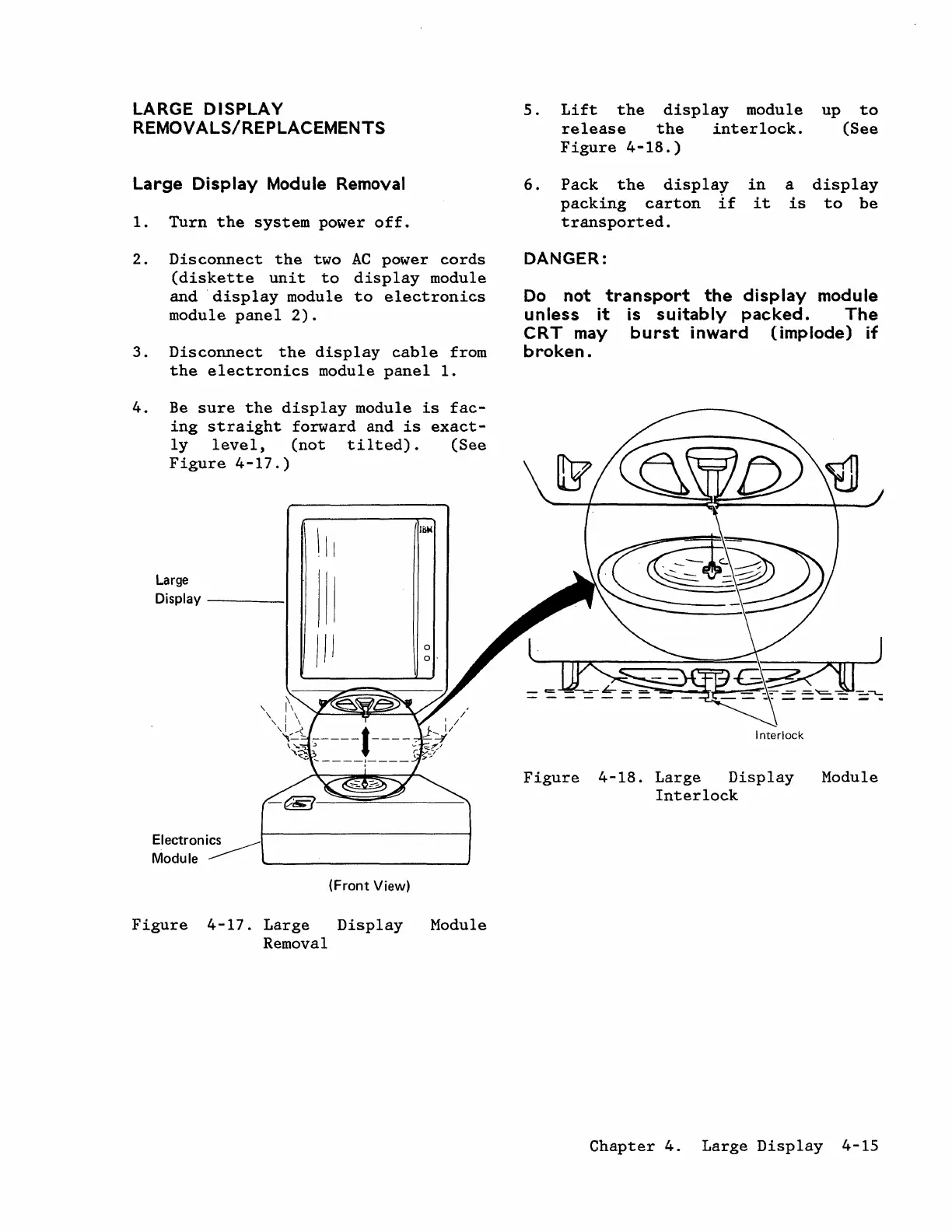

Large Display Module Removal
1. Turn the system power off.
2. Disconnect the two AC power cords
(diskette unit to display module
and . display module to electronics
module panel 2).
3. Disconnect the display cable from
the electronics module panel 1.
4. Be sure the display module is fac-
ing straight forward and is exact-
ly level, (not tilted) . (See
Figure 4-17.)
\ II
IfIW
Large
I
Display
/11
0
o·
Electronics ____
Module ----'-- _________ -J
(Front View)
Figure 4-17. Large Display Module
Removal
5.
6.
Lift the display module
release the interlock.
Figure 4-18.)
up to
(See
Pack the display in
packing carton if it
transported.
a display
is to be
DANGER:
Do not transport the display module
unless
it is suitably packed. The
CRT may burst inward (implode) if
broken.
Interlock
Figure 4-18. Large Display Module
Interlock
Chapter 4. Large Display 4-15
