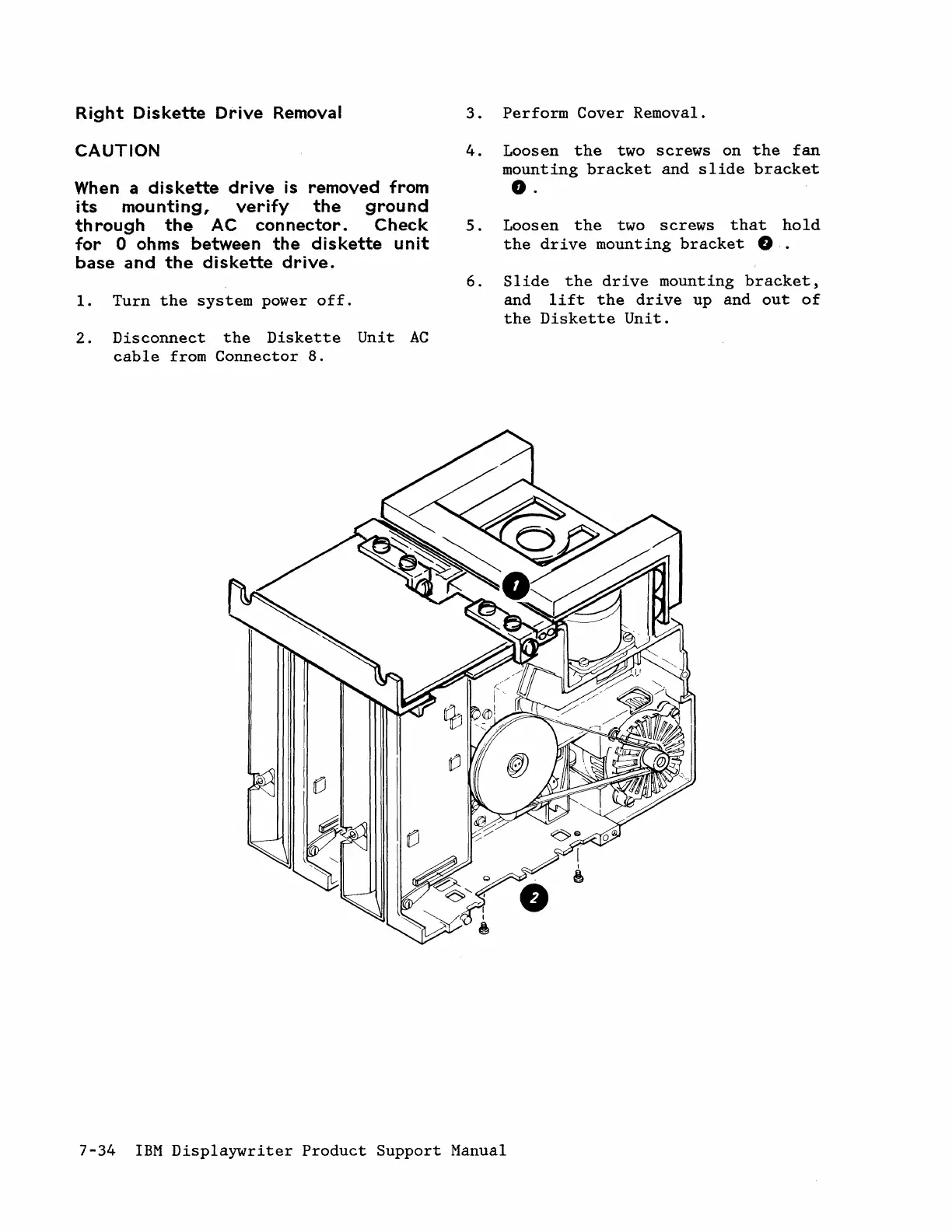

Right Diskette Drive Removal
CAUTION
When a diskette drive is removed from
its mounting,
verify the ground
through the AC connector. Check
for 0 ohms between the diskette unit
base and the diskette drive.
1. Turn the system power off.
2. Disconnect the Diskette Unit AC
cable from Connector 8.
3. Perform Cover Removal.
4. Loosen the two screws on the fan
mounting bracket and slide bracket
O.
5. Loosen the two screws that hold
the drive mounting bracket tt.
6. Slide the drive mounting bracket,
and lift the drive up and out of
the Diskette Unit.
7-34 IBM Displaywriter Product Support Manual
