IBM 6360 User Manual

Microprocessor
The system microprocessor is a single
chip on the system card and controls
the system. It controls the system
bus and the movement of data and has a
clock to synchronize the data flow.
1-----' ----------,
SYSTEM CARD .' I
L
I
I
;
PRINTER
TIMER
LINK
I
I ~--
INTERRUPT "---_-_-_-_-~ .. ;: KEYBOARD
CONTROLLER
.. SYSTEM BUS ADAPTER
--I!--l
I BUS BUrFFr_ER_'_----o,---.,----.
MICROPROCESSOR :
ROS I
__ A_N_D_C_LO_C_K __ ..... -- SYSTr BUS ~
I BUSBUFF~
I
I
I
I BUSBU;F6
I
L- ____ .... ~, _______ ........... ________ "'"'i" __ --..J
r-'-- .... r----,
r~ ~
--,
- ~I
I DISPLAY
I
I RAM I
I
ADAPTER
I
L~~~~J
l.D~L~~~~~
1-------,
,,-- __ +- ... 1 DISKETTE
I
ADAPTER
I

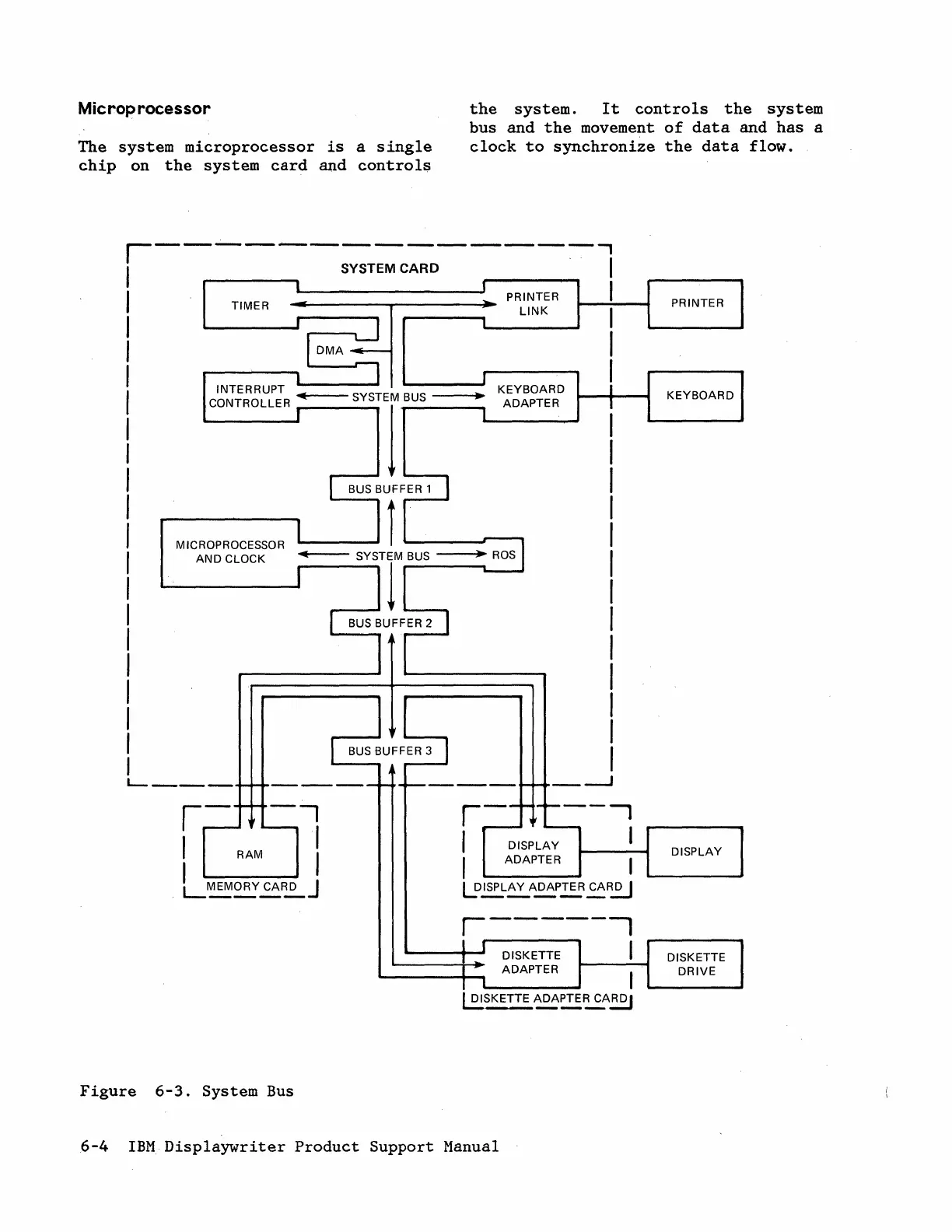

Figure 6-3. System Bus
6-4 IBM Displaywriter Product Support Manual
PRINTER
KEYBOARD
DISPLAY
DISKETTE
DRIVE
