Drive
Band
Replacement
1.
Attach
the
end
of
the
band
with
the
welded
adapter
to
the
adjusta-
ble
end
of
the
carriage
bracket.
Leave
the
screw
loose
•.
2.
Attach
the
band
to
the
drive
pulley
with
the
screw
and
clamp.
Ensure
that
the
band
is
parallel
to
the
edge
of
the
pulley
(leave
the
screw
loose)
•.
3.
Attach
the
other
end
of
the
band
to
the
carriage
bracket.
Ensure
that
the
band
is
parallel
to
the
carriage
bracket
•.
4.
Perform
stepper
drive
band
adjust-
ment.

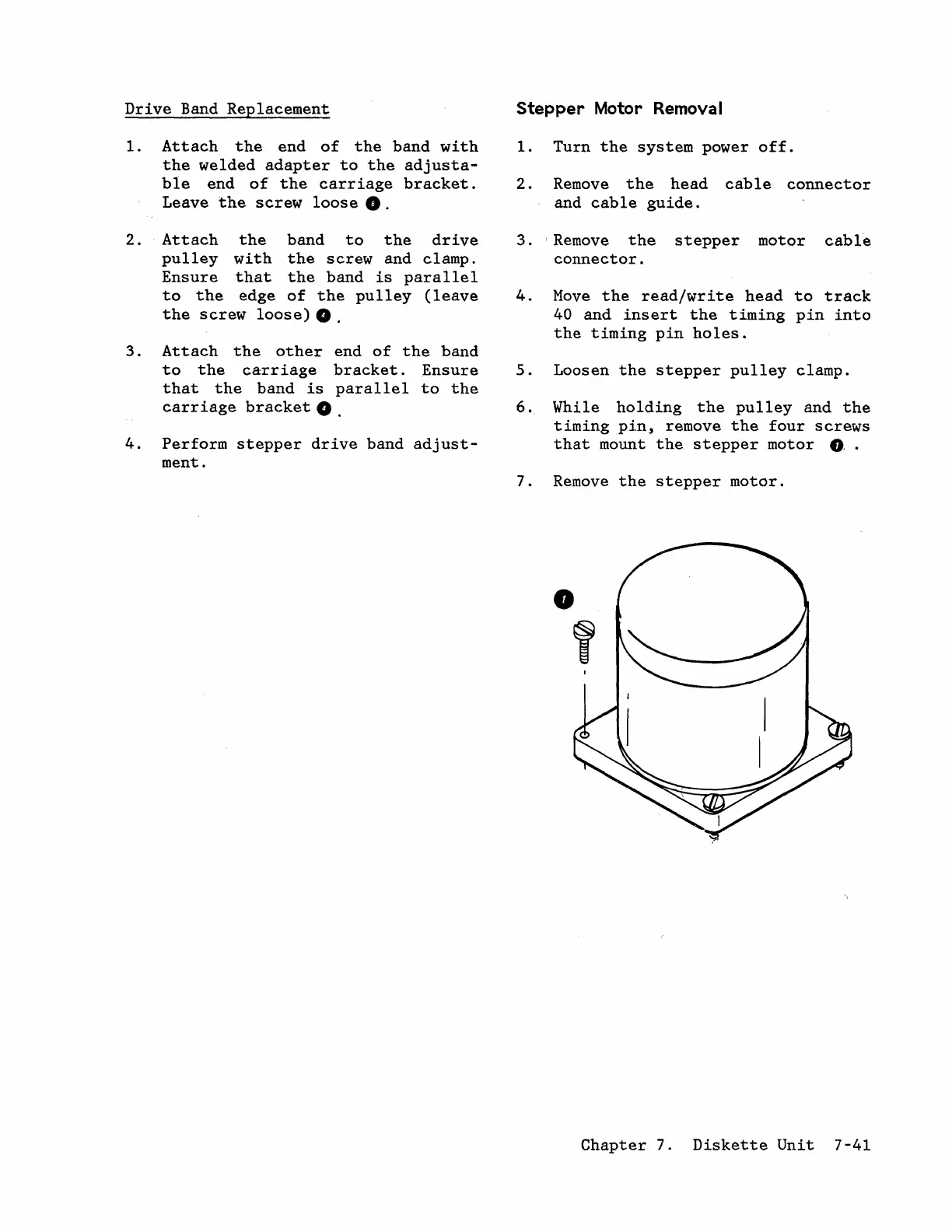

Stepper Motor Removal
1.
Turn
the
system
power
off.
2.
Remove
the
head
cab
Ie
connector
and
cable
guide.
3.
'Remove
the
stepper
motor
cable
connector.
4.
Move
the
read/write
head
to
track
40
and
insert
the
timing
pin
into
the
timing
pin
holes.
5.
Loosen
the
stepper
pulley
clamp.
6.
While
holding
the
pulley
and
the
timing
pin,
remove
the
four
screws
that
mount the.
stepper
motor
0,.
7.
Remove
the
stepper
motor.
o
,
Chapter
7.
Diskette
Unit
7-41
