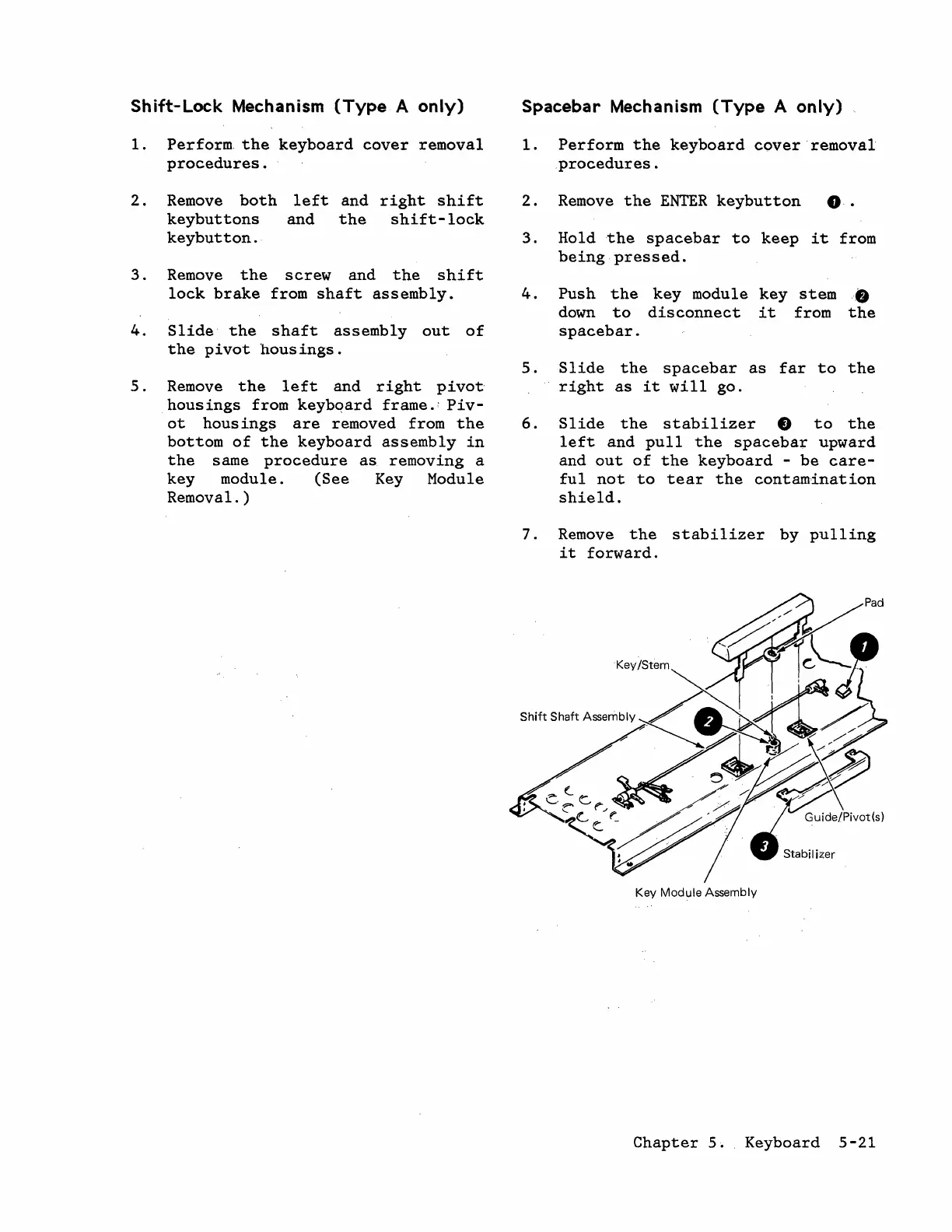

Shift-Lock Mechanism (Type A only)
1. Perform, the keyboard cover removal
procedures.
2. Remove both left and right shift
keybuttons and the shift-lock
keybutton.
3. Remove the screw and the shift
lock brake from shaft assembly.
4. Slide the shaft assembly out of
the pivot housings.
5. Remove the left and right pivot,
housings from keyboard frame.: Piv-
ot hous ings are removed from the
bottom of the keyboard assembly in
the same procedure as removing a
key module. (See Key Module
Removal. )
Spacebar Mechanism (Type A only)
1. Perform the keyboard cover 'removal
procedures.
2. Remove the ENTER keybutton • .
3. Hold the spacebar to keep it from
being-pressed.
4. Push the key module key steme
down to disconnect it from the
spacebar.
5. Slide the spacebar as far to the
right as it will go.
6. Slide the stabilizer e to the
left and pull the spacebar upward
and out of the keyboard - be care-
ful not to tear the contamination
shield.
7 . Remove the stabilizer by pulling
it forward.
Key Module Assembly
Chapter 5. Keyboard 5-21
