IBM 6360 User Manual

PRINTER
The printer to work station interface
connection is at the system electron-
ics module, panel 1 at connector 0, or
port 0 feature if present.
OA:
OB~
o C I
=
00=
o @\CJJo 1 €(O)@ 2 @~ l
30 4@~ J]@ 5 @U J~
OE~
OF N
c..>
oG""
....
oHc:n
.....
Pin No.
1
2
3
4
5
6
7
8
9
Panel 1
~Pin1
000
Pin 9 Female
Termination
Connector
.*
*
*
*
*
*
*'
*
*
.
Identification
Transmit High
Transmit Low
Receive High
Receive Low
Frame Ground
Frame Ground
Data
Set Ready
Data
Set Ready
Data
Set Ready
* Refer to Printer Manual

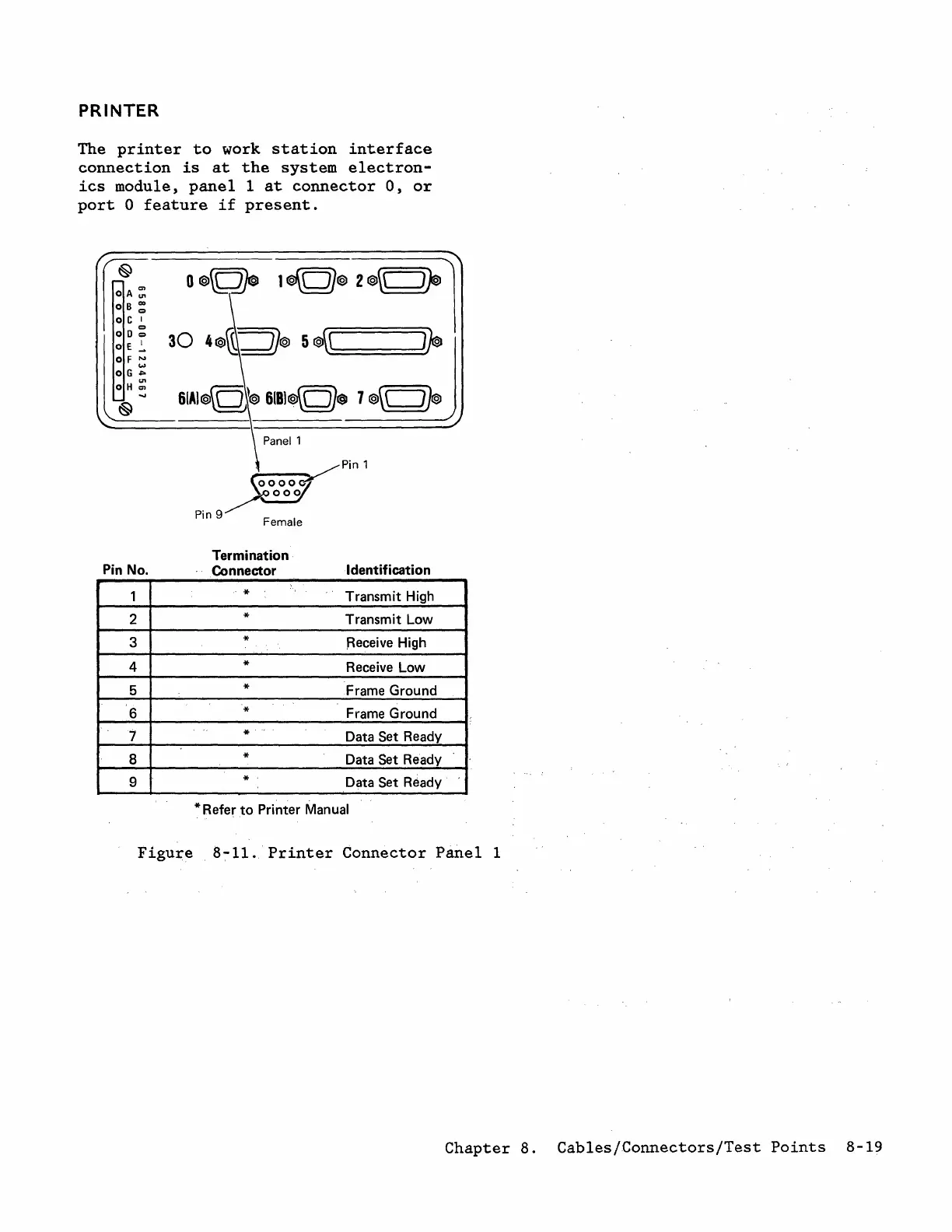

Figure 8-11. Printer Connector Panel 1
Chapter 8. Cables/Connectors/Test Points 8-19
