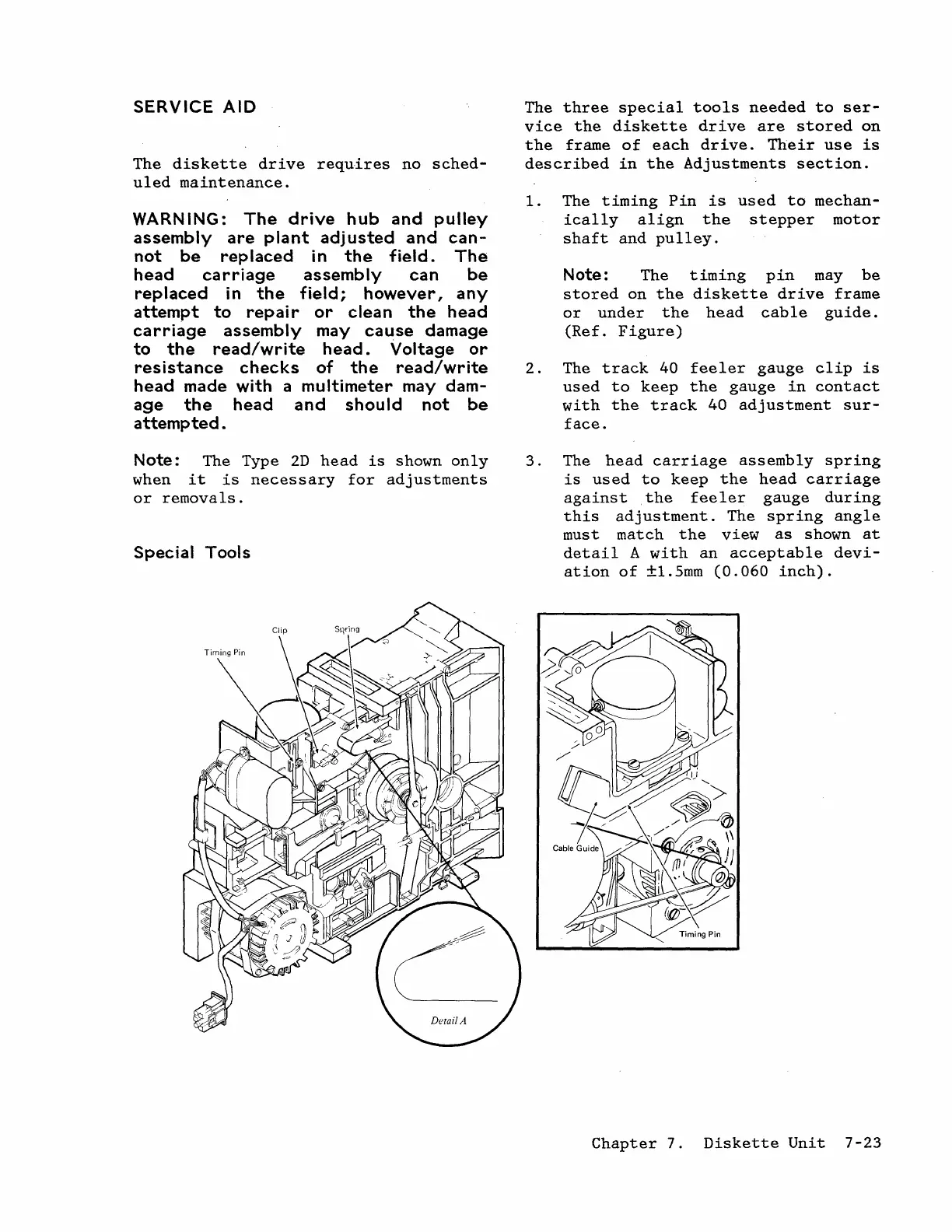

SERVICE AID
The diskette drive requires no sched-
uled maintenance.
WARNING: The drive hub and pulley
assembly are plant adjusted and can-
not be replaced in the field. The
head carriage assembly can be
replaced in the field; however, any
attempt to repair or clean the head
carriage assembly may cause damage
to the read/write head. Voltage or
resistance checks of the read/write
head made with a mu Itimeter may dam-
age
the head and should not be
attempted.
Note: The Type 2D head is shown only
when it is necessary for adjustments
or removals.
Special Tools
The three special tools needed to ser-
vice the diskette drive are stored on
the frame of each drive. Their use is
described in the Adjustments section.
1. The timing Pin is used to mechan-
ically align the stepper motor
shaft and pulley.
Note: The timing pin may be
stored on the diskette drive frame
or under the head cable guide.
(Ref. Figure)
2. The track 40 feeler gauge clip is
used to keep the gauge in contact
with the track 40 adjustment sur-
face.
3. The head carriage assembly spring
is used to keep the head carriage
against the feeler gauge during
this adjustment. The spring angle
must match the view as shown at
detail A with an acceptable devi-
ation of ±1.5mm (0.060 inch).
Chapter 7. Diskette Unit 7-23
