10
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
13 0000000000000 1
25 000000000000 14
Female
10 (DISKETTE DC CABLE)
Termination
Connector
B2
13
14
1
2
10
6
15
16
17
18
19
5
12
3
-
-
-
-
-
20
21
-
-
-
-
-
Identification
+5.0 VDC
+5.0
VDC
+5.0 VDC
+5.0 VDC
+12.0 VDC
POR DIS (+18VDC)
Signal
Ground
Signal Ground
Signal Ground
Signal Ground
Signal Ground
-5.0 VDC
+24.0 VDC
+5.0
VDC
-
-
-
-
-
Signal Ground
Signal Ground
-
-
-
-

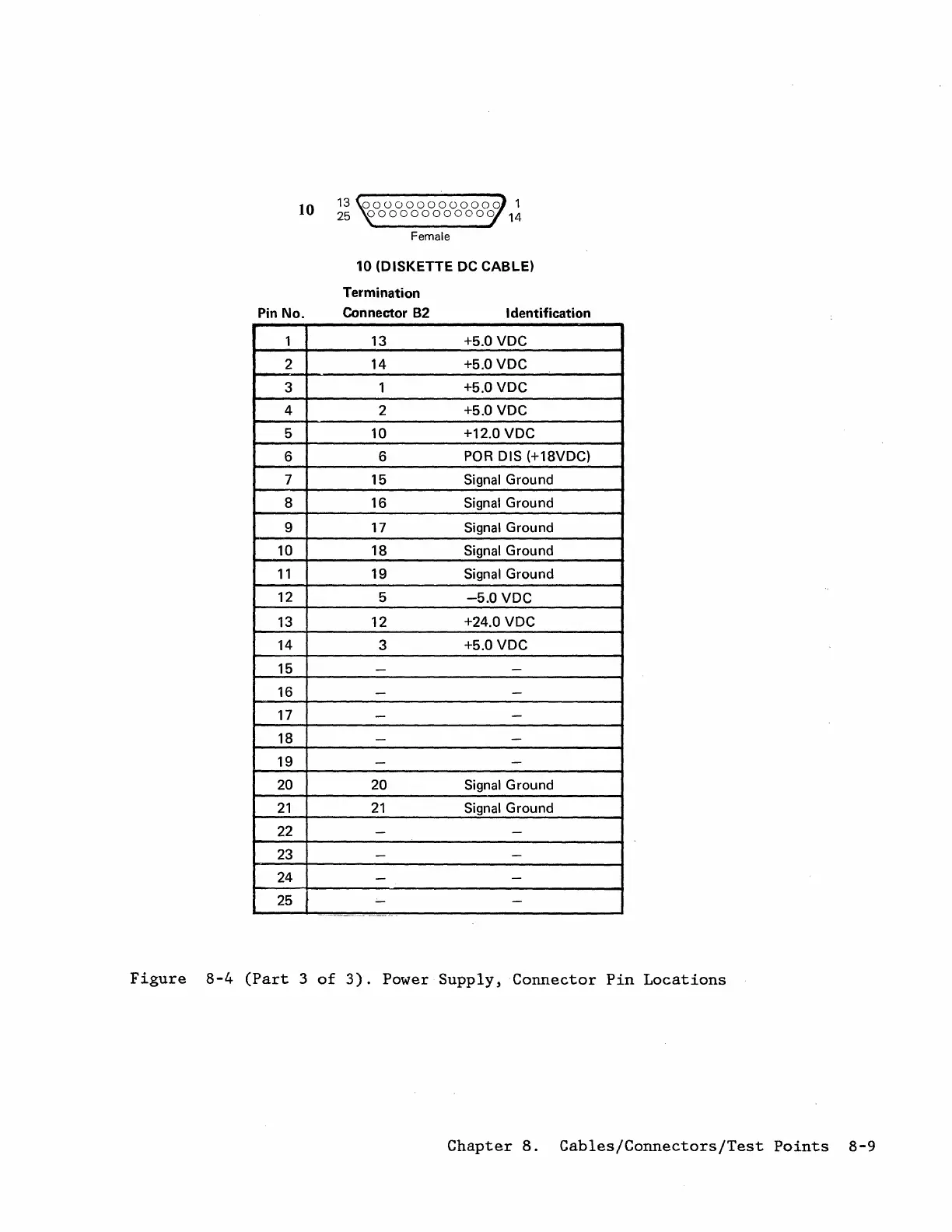

Figure 8-4 (Part 3 of 3). Power Supply, Connector Pin Locations
Chapter 8. Cables/Connectors/Test Points 8-9
