IBM 6360 User Manual

Distribution Board
A1
.~
NOTE: All connectors shown
from wiring side.
Pin 1
b.r-=E:1~~~~
Pin 13 P' 24
A1 (SYSTEM DC POWER CABLE) In
Termination Conn.
Pin No.
P1
Identification
1
-
-
2
-
-
3 20
Ground
4
17 Ground
5 18
Ground
6 19 Ground
7
-
-
8
1
-12.0 VDC
9 21 +5.0 VDC
10
22
+5.0 VDC
11
23 +5.0 VDC
12 24
+5.0 VDC
13
2 -5.0 VDC
14
-
-
15 14
+8.5
VDC
16 4 Ground
17
6
Ground
18
5
Ground
19
-
-
20 15
+12.0 VDC
21 13 POR
22 10 +5.0 VDC
23
11 +5.0 VDC
24
12
+5.0 VDC

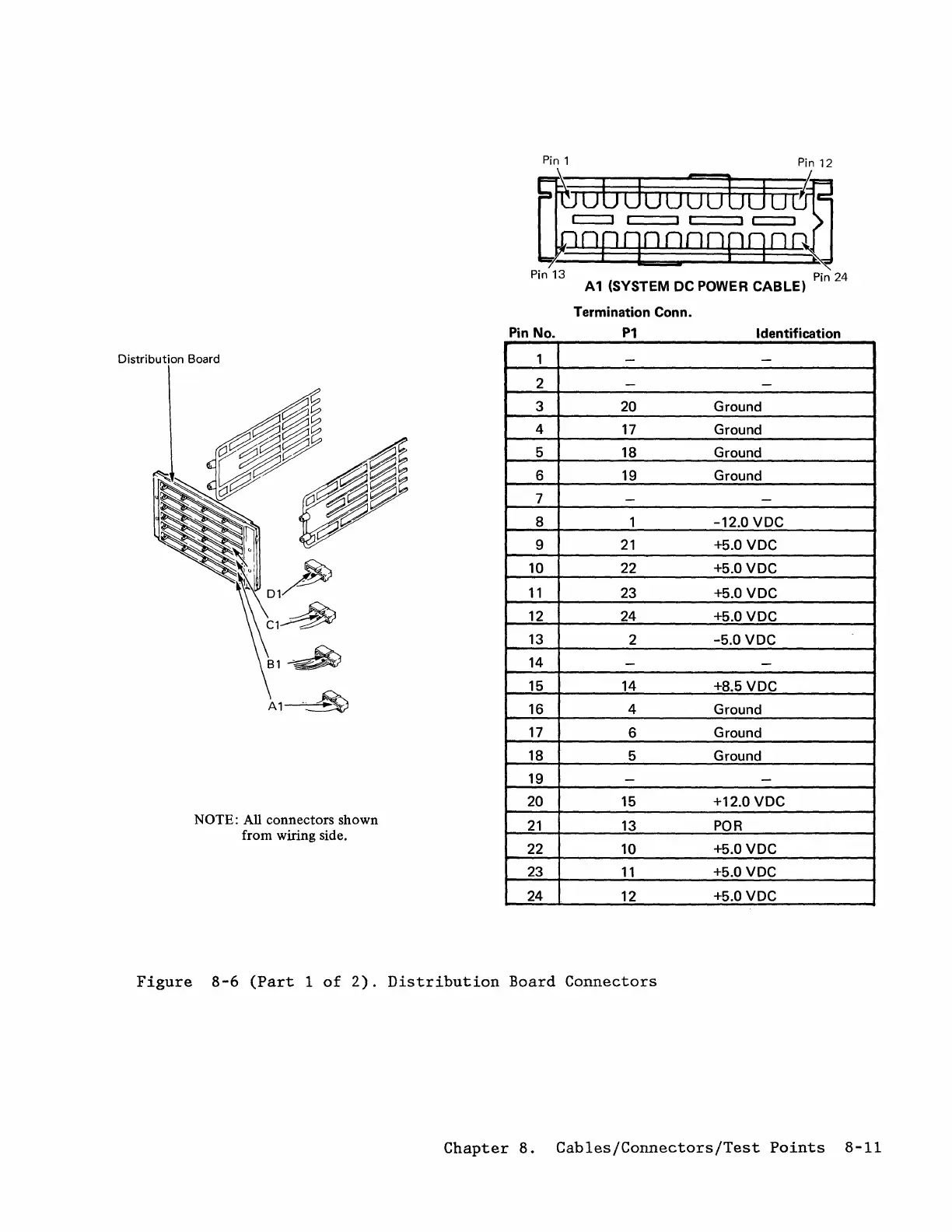

Figure 8-6 (Part 1 of 2). Distribution Board Connectors
Chapter 8. Cables/Connectors/Test Points 8-11
