Grounding Points
Ground
SQfin~IOn
CRT
to
CRT Socket Pin 5
(AC) LV3-2
to
Frame Ground
(AC) Connector 8 Ground
to
Frame Ground
(AC) Display Power Cable Ground
to
Frame Ground
Connector 2 Pin 8
to
Frame Ground
Connector J1-17,
19,21,
and 23
to
Frame Ground
Shield
(for
Video
Output
wires)
to
Frame Ground
(World Trade
Only)
Low
Voltage Power Supply
to
Frame Ground
Connector 8
(AC out)
Connector 12
Display Power Cable
(ACin)

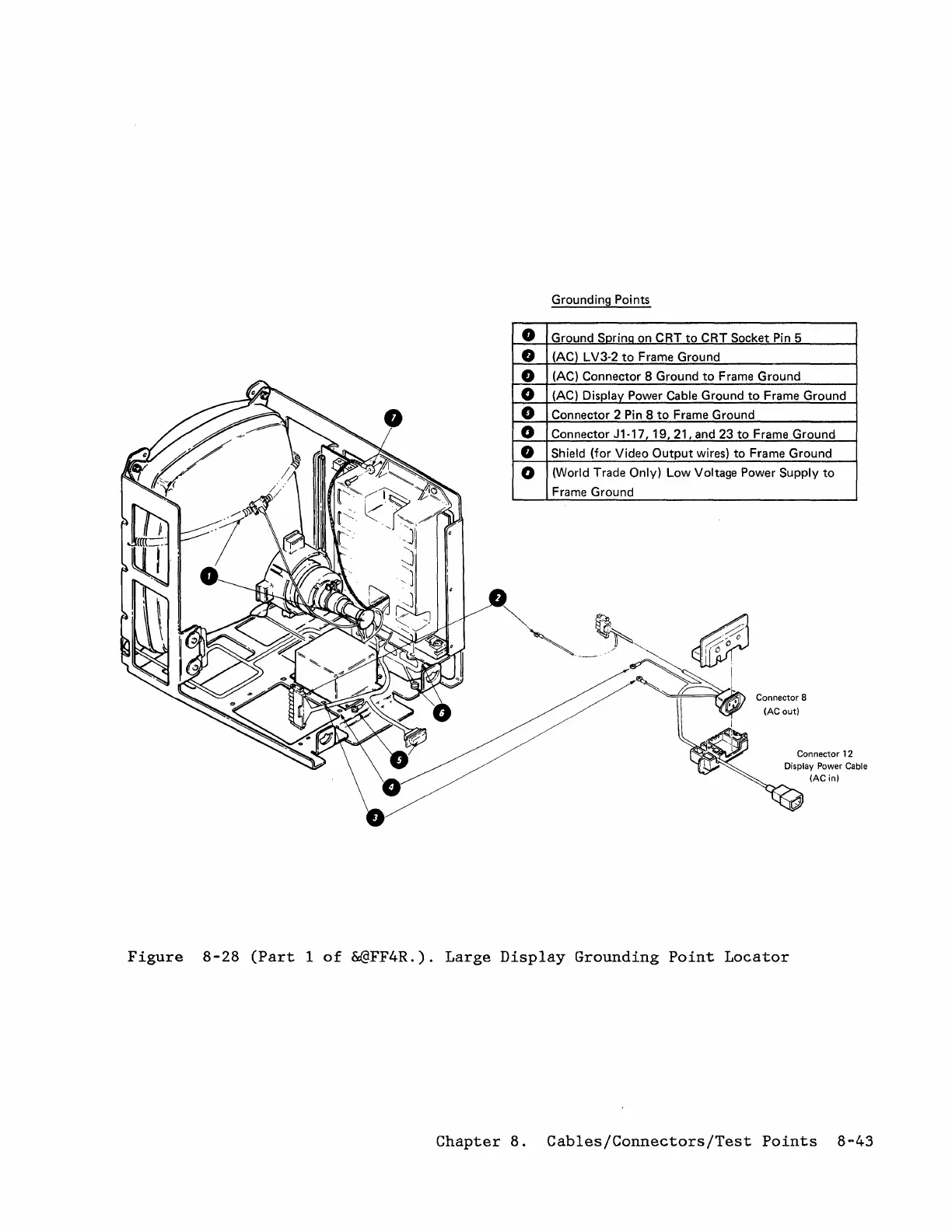

Figure
8-28
(Part
1
of
&@FF4R.).
Large
Display
Grounding
Point
Locator
Chapter
8.
Cables/Connectors/Test
Points
8-43
