4. If you have a second M/PDU device to install, install it on the vertical mounting
plate with four M3x5 screws that come with the second device.
5. Install the vertical mounting plate 2 in the side of your rack cabinet with four
M6 screws and nuts that come with this option. Make sure that the
seven-connector side of the Rack PDU is facing the rear of your rack cabinet,
and leave room between the vertical mounting plate and the rear EIA mounting
flanges for the cable-management bracket 1.
6. Install the cable-management bracket 1 beside the vertical mounting plate
with four M6 screws and nuts that come with this option.
Proceed to “Cabling your PDUs” on page 137 for instructions on how to cable
your Rack PDU.
Installing a single device horizontally
Use the following procedure to mount a single Rack PDU horizontally in your rack
cabinet:
1. Refer to the documentation that comes with your rack cabinet for additional
information.

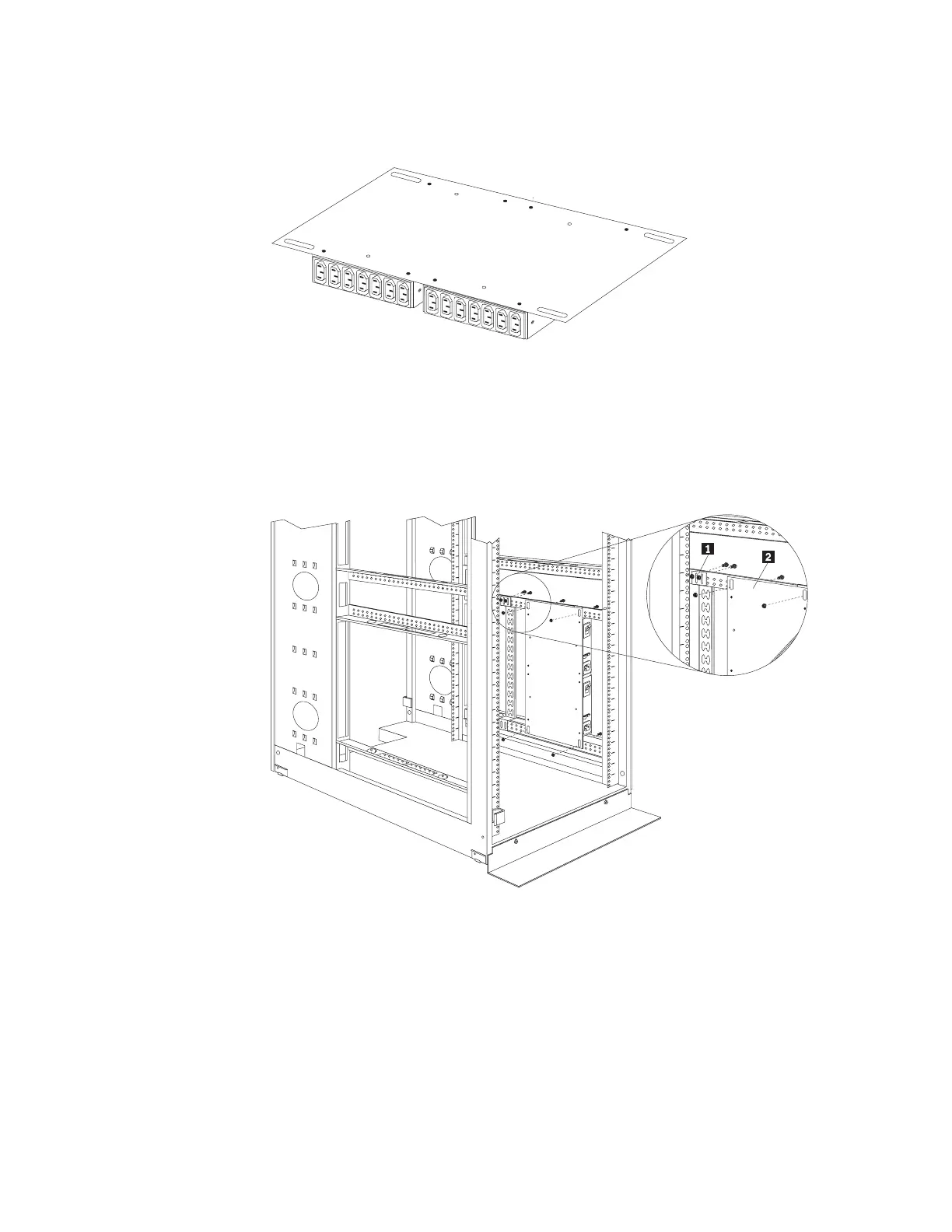

Figure 44. Installing a second Rack PDU
Figure 45. Installing the vertical mounting plate and cable-management bracket
Installing Optional Devices 133
