6. Install the 1U blank filler panel 1 on the front of the rack cabinet at the same
U level as the Rack PDU. Use two M6 screws that come with this option.
Proceed to “Cabling your PDUs” on page 162 for instructions on how to cable
your Rack PDU.
Installing two devices horizontally
Use the following procedure to mount two Rack PDUs horizontally in your rack
cabinet:
1. Refer to the documentation that comes with your rack cabinet for additional
information.
Notes:
a. Removing the rack doors and side panels might make your Rack PDU
installation easier.
b. Use clip nuts for rack cabinets with round holes; use cage nuts for rack
cabinets with square holes.
Cage
nuts
Cage
nuts
Clip
nuts
7

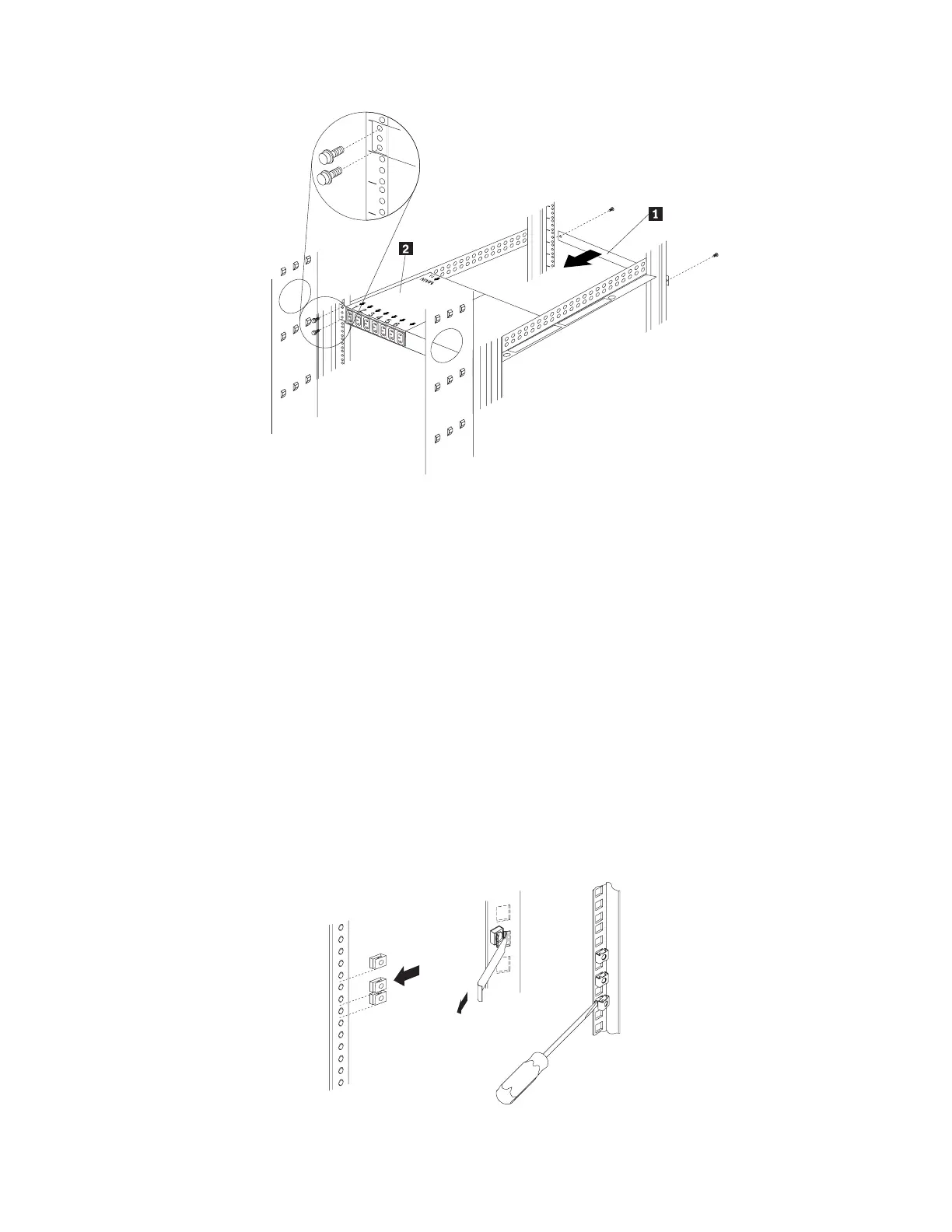

Figure 47. Installing the Rack PDU and the blank filler panel
Installing Optional Devices 135
