rear of the rack cabinet with four M6 screws and clip nuts or cage nuts (two
screws and nuts per bracket).
7. Install the 1U blank filler panel 1on the front of the rack cabinet at the same U
level as the Rack PDU. Use two M6 screws that come with this option.
Proceed to “Cabling your PDUs” on page 162 for instructions on how to cable
your Rack PDU.
Cabling your PDUs
Cable routing differs between horizontal and vertical Rack PDU installations. Refer
to “
Cabling instructions for vertical-mount PDUs” on page 164 or “Cabling instructions
for horizontal-mount PDUs” on page 165 as appropriate for your installation.
7
7

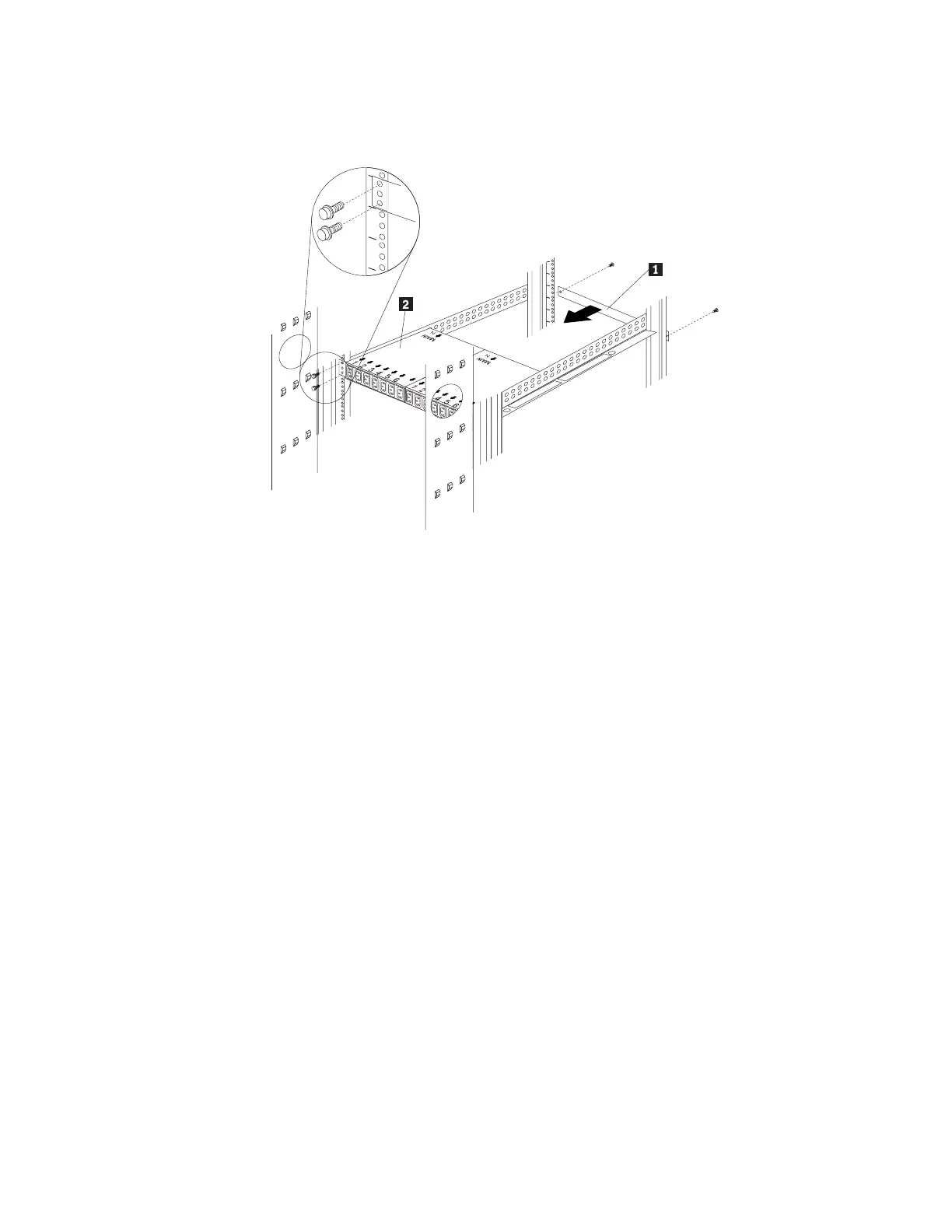

Figure 49. Installing two Rack PDUs and the blank filler panel
Installing Optional Devices 137
