1. Unlock and open the front door.
2. While supporting the door, lift the bottom hinge-pin latch and move it clockwise
to unlock the bottom hinge pin; then, unlock the top hinge pin.
3. Pull the door away from the rack cabinet; then, set the door aside.
Reverse this procedure to install the front door on the rack cabinet.
Attention: When you install the front door, ensure that you align the hinge pins
with the hinges on the rack cabinet before you lock the hinge pins into place.
Removing and installing the top 6U portion of the rack
You can temporarily remove the top 6U portion (including the top cover) of the rack
cabinet while you move the rack cabinet through some nonstandard doorways. You
must first remove both doors according to “Doors” on page 61.
You will need two people to remove and install the top 6U portion of the rack
cabinet according to the following procedure:
1. Install support bars on the front and rear of the rack cabinet, using two screws
per support bar.
2. Remove the 16 screws (eight per side) that hold the top 6U portion of the rack
cabinet in place.
Front support bar
> 18 kg ( 39.7 lb)
Rear support bar
Top 6U

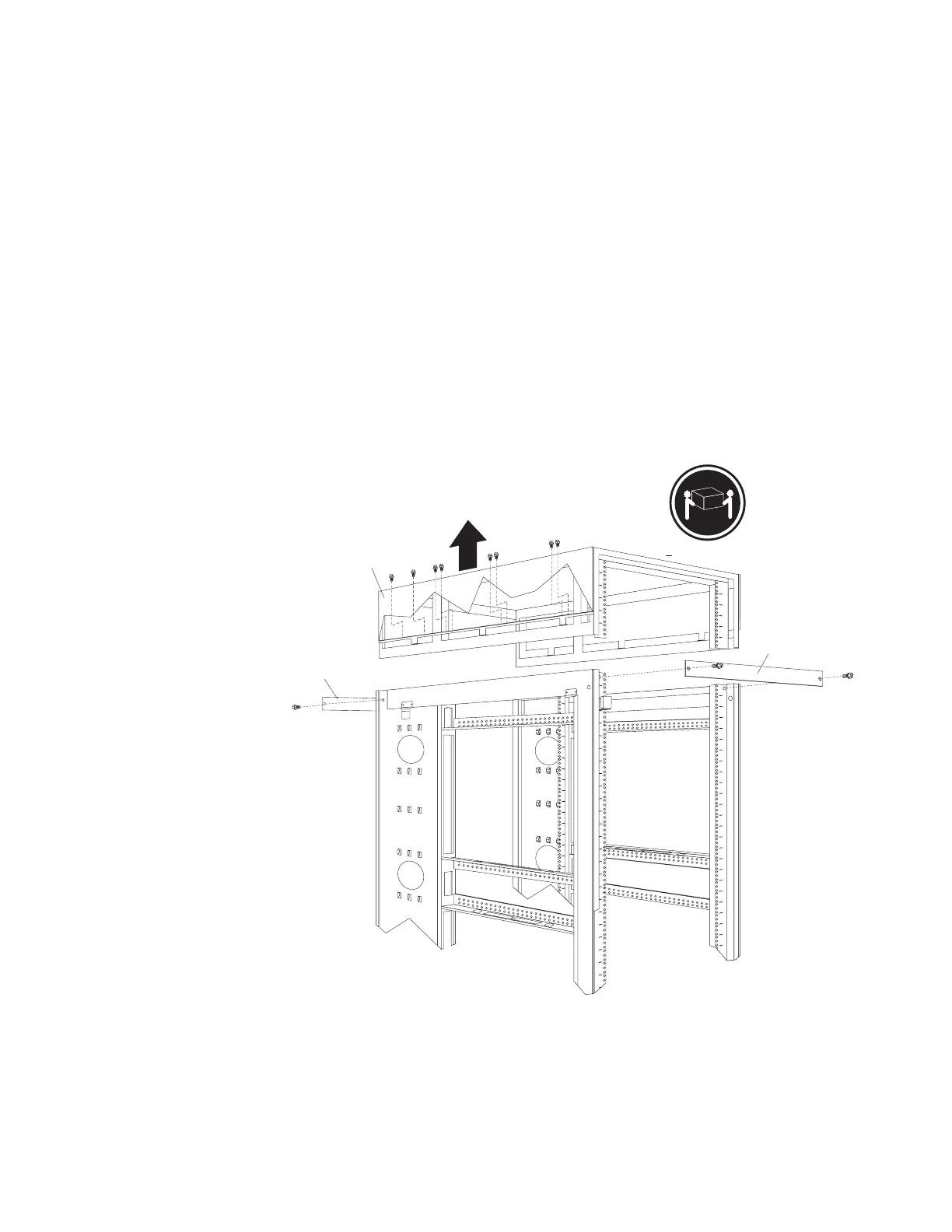

Figure 23. Removing the top 6U portion of the rack cabinet
NetBAY 42 Enterprise Rack (Type 9308 Models 42P, 42X, 4SA, 4SB, 42S, 42E) 65
