5. Snap the trim pieces into place between the adjacent rack cabinets. Install one
trim piece in the front and one in the rear.
6. Repeat step 3 through step 5 for all other adjacent rack cabinets in the suite.
7. On the outside of the outermost expansion rack cabinets in the suite, install the
side panels that you removed in step 1.
8. Install the front and rear doors on all rack cabinets.
Installing L-channel support rails to rack mounting brackets

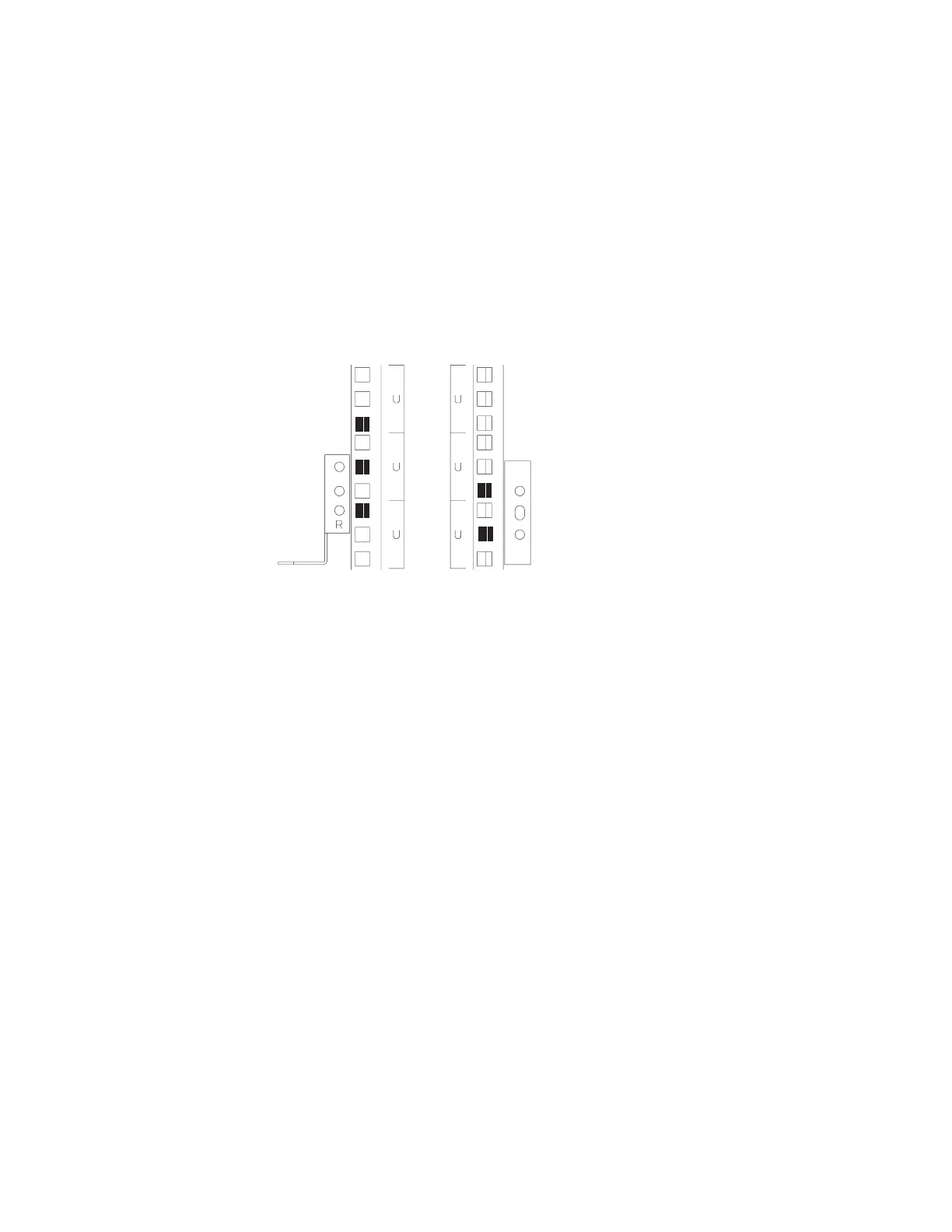

1. Use the following illustration of the front and rear rack mounting flanges to
determine the appropriate rack-mounting holes for installing cage nuts or clip
nuts to secure the rails. From left to right, the illustration shows the front and
rear flanges respectively.
Front Rear
68 Hardware Maintenance Manual: IBM PC Server/Enterprise Racks Types 9306, 9308
