NetBAY3 enclosure
Features
The IBM NetBAY3 enclosure provides a convenient 3-U high by 24-inch deep
storage cabinet for the installation of computer devices.
Note: Vertical measurements are given in rack units (U). One U is equal to 4.45
cm (1.75-inches).
Up to three NetBAY3 enclosures can be stacked under certain IBM servers.
Devices such as the IBM EXP10, an uninterruptable power supply (UPS), or various
telecommunications equipment can also be installed in a NetBAY3 enclosure.
Locations
The following sections contain information on specific equipment locations.
Important:
v The maximum server weight is 77 kg (170 lb.).
v Refer to the latest IBM Server Hardware Maintenance Manual when
servicing the server.
v Assure all power and signal cables are routed properly and are not
pinched.
v Make sure NetBAY3 enclosures in a stack are securely fastened
together.
v Servers are lifted onto and off of the NetBAY3 enclosure. Make sure
you have help when lifting.
v Servers are lifted onto and off of the NetBAY3 enclosure. Make sure
you have help when lifting.

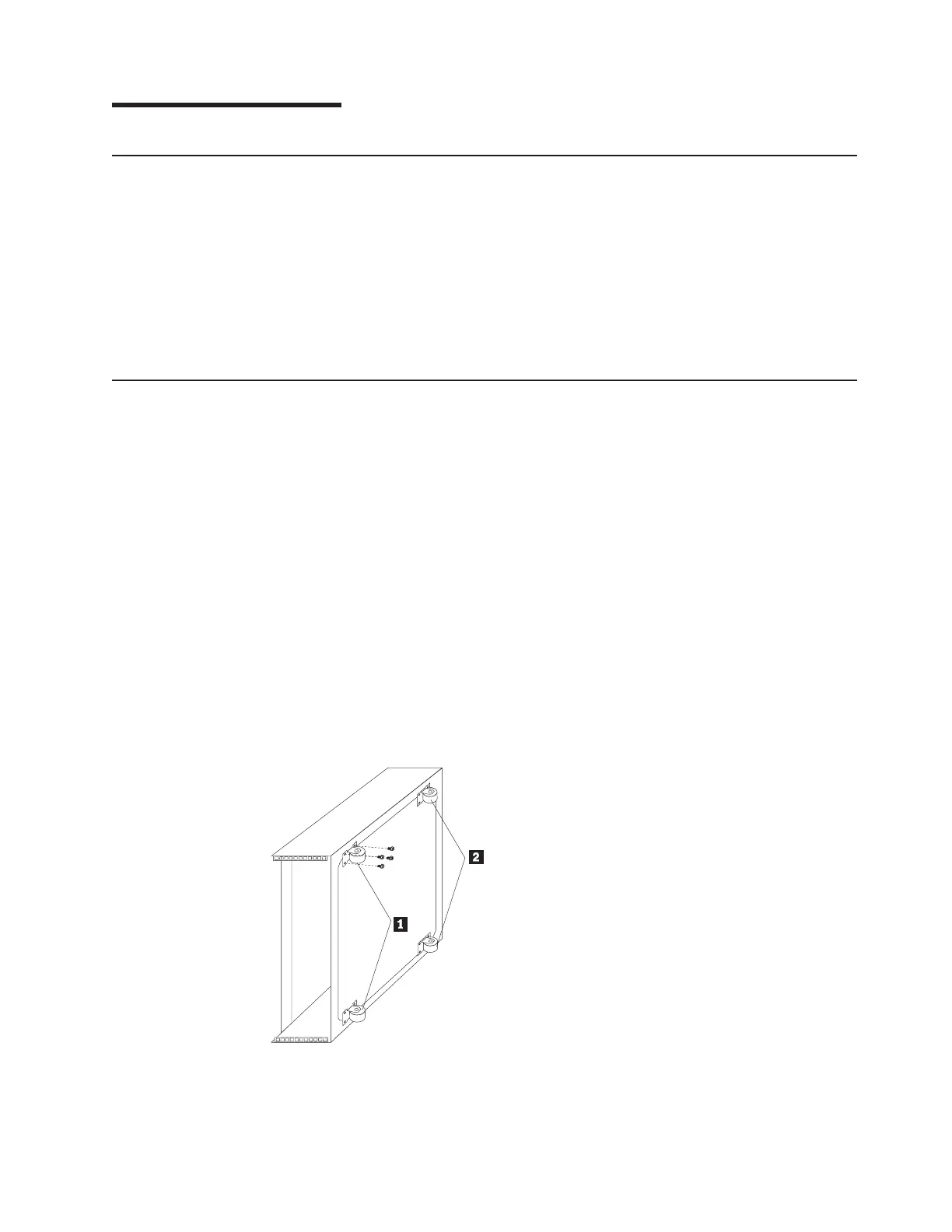

Casters
v Two fixed casters 1 at the front of the NetBAY3 enclosure.
v Two swivel casters 2 at the rear of the NetBAY3 enclosure.
© Copyright IBM Corp. 2001 73
