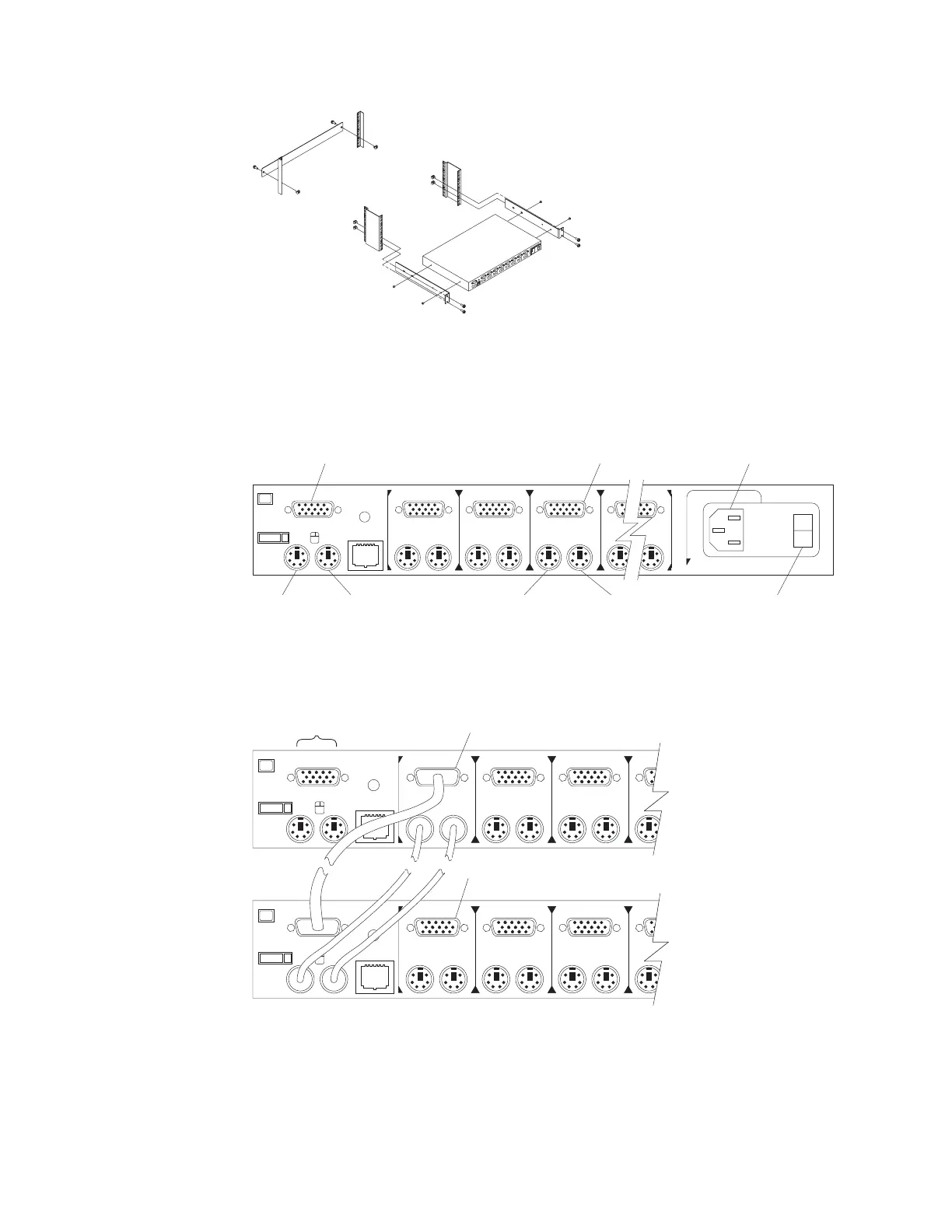

Selector switch cable connections
One
KM
Three
KM
KMKM
Two
Aux.
Reset
Important
Information
1
0
Power Cord
Connector
Power
Switch
Computer 3
Mouse
Computer 3
Keyboard
Computer 3
Monitor
Mouse
Keyboard
Monitor
Tiered switch configuration
One
KM
Three
KM
KKM
Two
Aux.
Reset
Monitor
Keyboard
Mouse
Connectors
One
KM
Three
KM
KKM
Two
Aux.
Reset
System 1 to 8
System 1-1 to 1-8
One eight-port primary selector switch can accommodate up to eight secondary
selector switches which can then support up to 64 servers.
Note: There are two types of selector switches available:
v 4 port
v 8 port
Figure 75. Selector switch rear of rack with blank panel front of rack
172 Hardware Maintenance Manual: IBM PC Server/Enterprise Racks Types 9306, 9308
