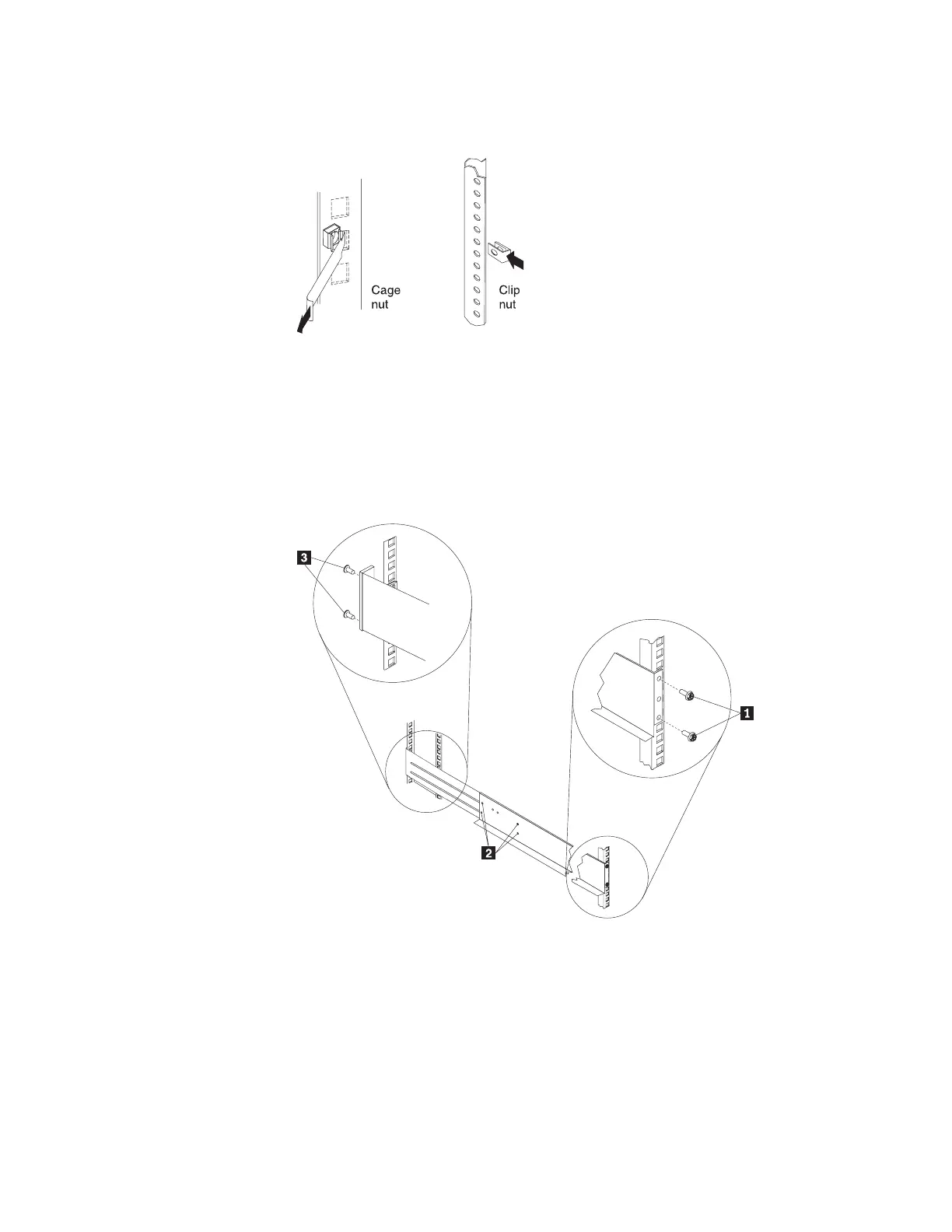

Note: Use clip nuts if your rack has circular holes. If your rack has square
holes, you can use the rack-insertion tool or a flat-blade screwdriver to
install cage nuts.
2. On the rail marked R, loosen the four screws 2.
3. Hold the rail against the outside of the right rack-mounting flange, and loosely
insert the two front M6 screws 1.
4. Extend the rail outside of the rear rack-mounting flange; then, install and tighten
two rear M6 screws 3.
5. Tighten the two front screws 1; then, tighten the four screws 2.
Repeat step 2 through step 5 to install the rail marked L on the left side of the
rack.
NetBAY 42 Enterprise Rack (Type 9308 Models 42P, 42X, 4SA, 4SB, 42S, 42E) 69
