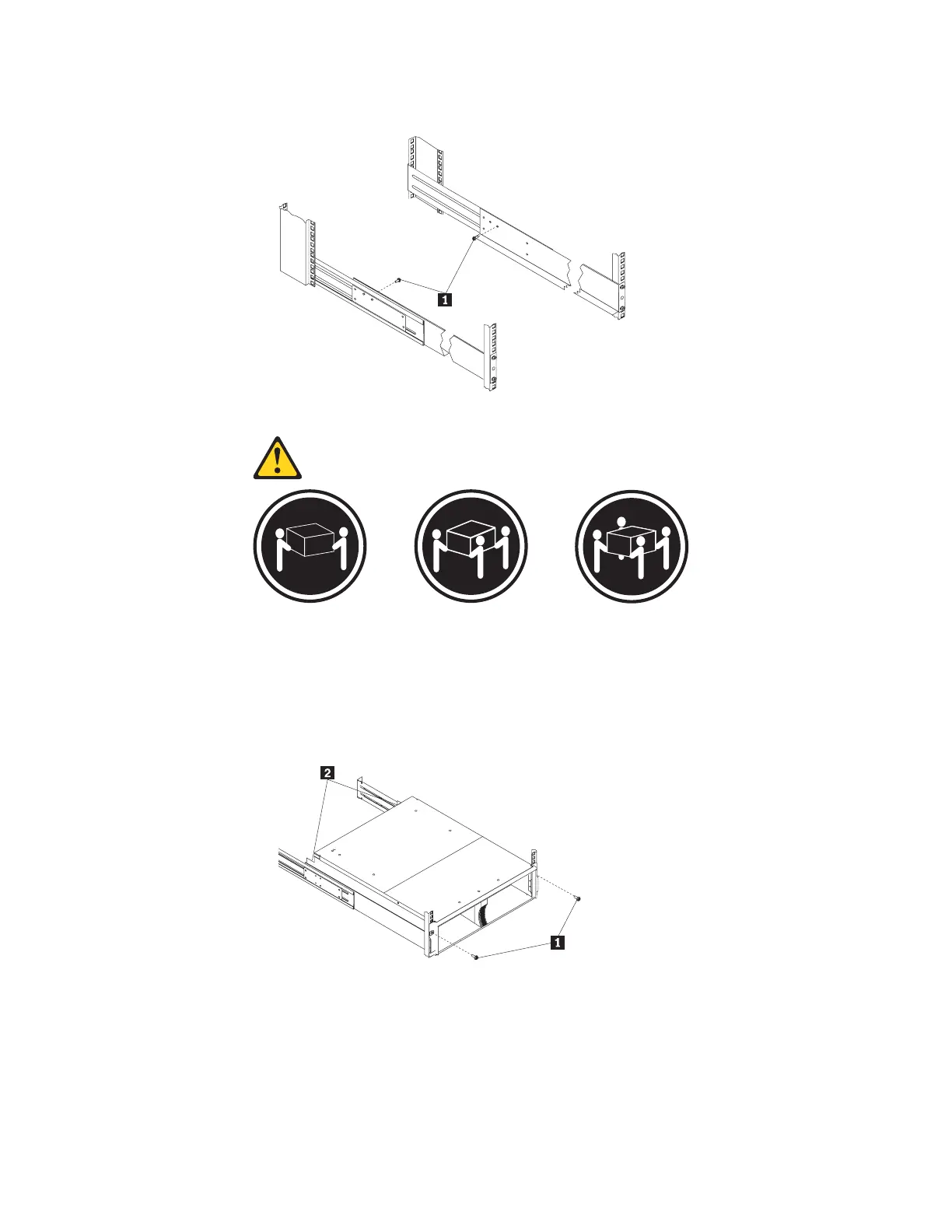

6. Loosely insert one M5 screw 1 into each rail.
Statement 5
≥18 kg (37 lbs) ≥32 kg (70.5 lbs) ≥55 kg (121.2 lbs)
CAUTION:
Use safe practices when lifting.
7. Slide the expansion unit into the rack, and insert the M6 screws 1.Donot
overtighten the M6 1 screws.
8. Tighten the rear screws 2.
70 Hardware Maintenance Manual: IBM PC Server/Enterprise Racks Types 9306, 9308
