3. Install the vertical mounting plate in the side of your rack cabinet with four M6
screws and nuts that come with this option. Make sure that the three-connector
side of the Rack PDU is facing up.
4. Route the fixed line cord down, towards the rack side braces; then, route the
line cord along the side brace towards the back of the rack cabinet and secure
it with the cable straps that come with this option.

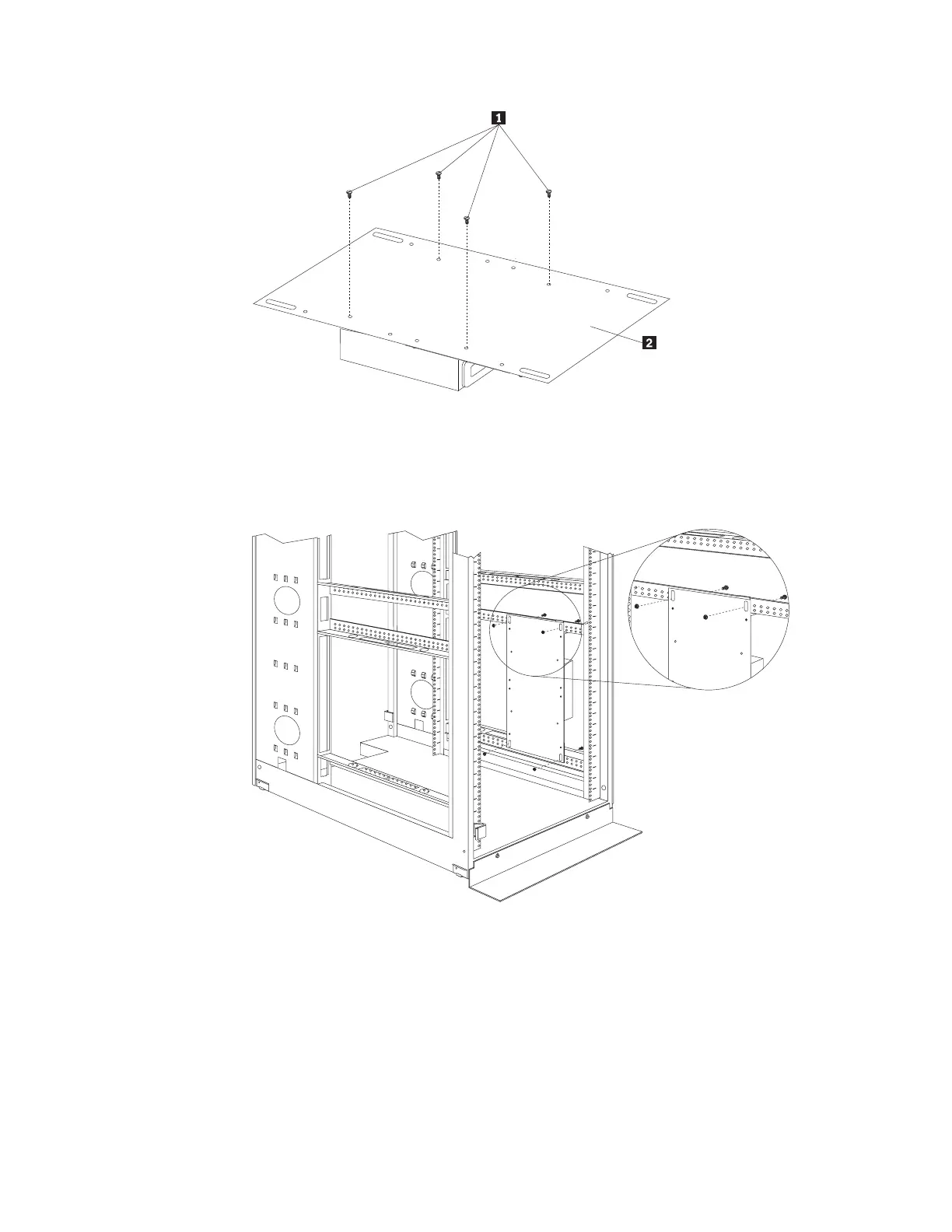

Figure 54. Installing the Rack PDU on the vertical mounting plate
Figure 55. Installing the vertical mounting plate
148 Hardware Maintenance Manual: IBM PC Server/Enterprise Racks Types 9306, 9308
