Removing rear filler panels: Use the following procedure to remove the rear filler
panels from the rack cabinet:
1. Grasp the rear filler panel firmly and slide it slowly toward the front of the rack
cabinet.
2. Lift the filler panel and remove it from the rack cabinet.
3. Repeat this procedure to remove both filler panels.
Reverse this procedure to install the rear side panels on the rack cabinet.
Installing rear filler panels: Use the following procedure to install the rear filler
panels on the rack cabinet:
1. Align the bottom of the rear filler panel with the tab on the bottom rear of the
rack cabinet.
Rear filler panel

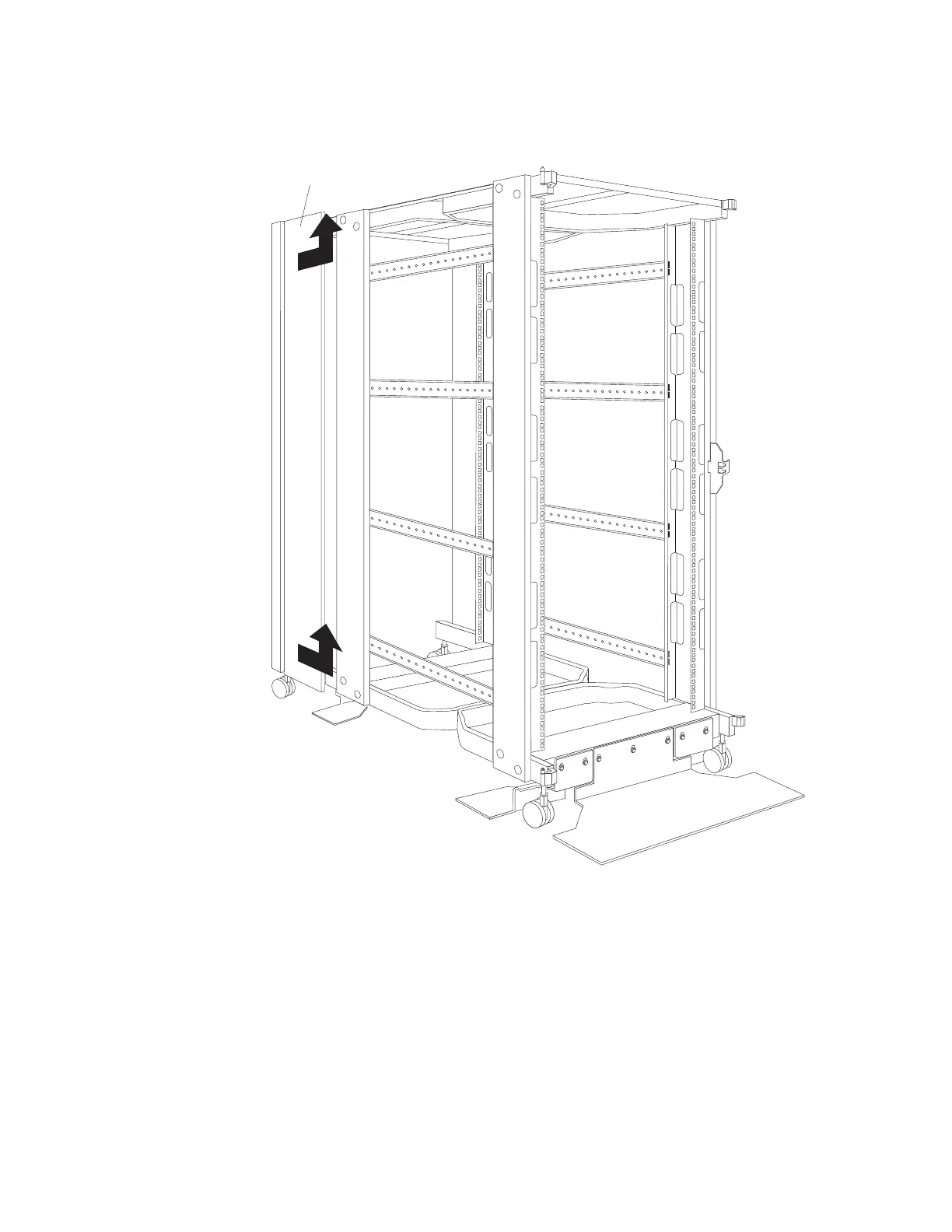

Figure 11. Removing the NetBAY42 rear filler panels
Type 9306 Model 250/420/421 15
