Removing and installing a NetBAY42 door: Use the following procedure to
remove a front or rear door from the rack cabinet:
1. Unlock and open the door.
2. Grasp the door firmly with both hands and lift it upward and away from the
hinges; then, set the door aside.
Reverse this procedure to install the door on the rack cabinet.
Reversing a front or rear door: Use the following procedure to reverse a front or
rear door on the rack cabinet so that it opens in the opposite direction:

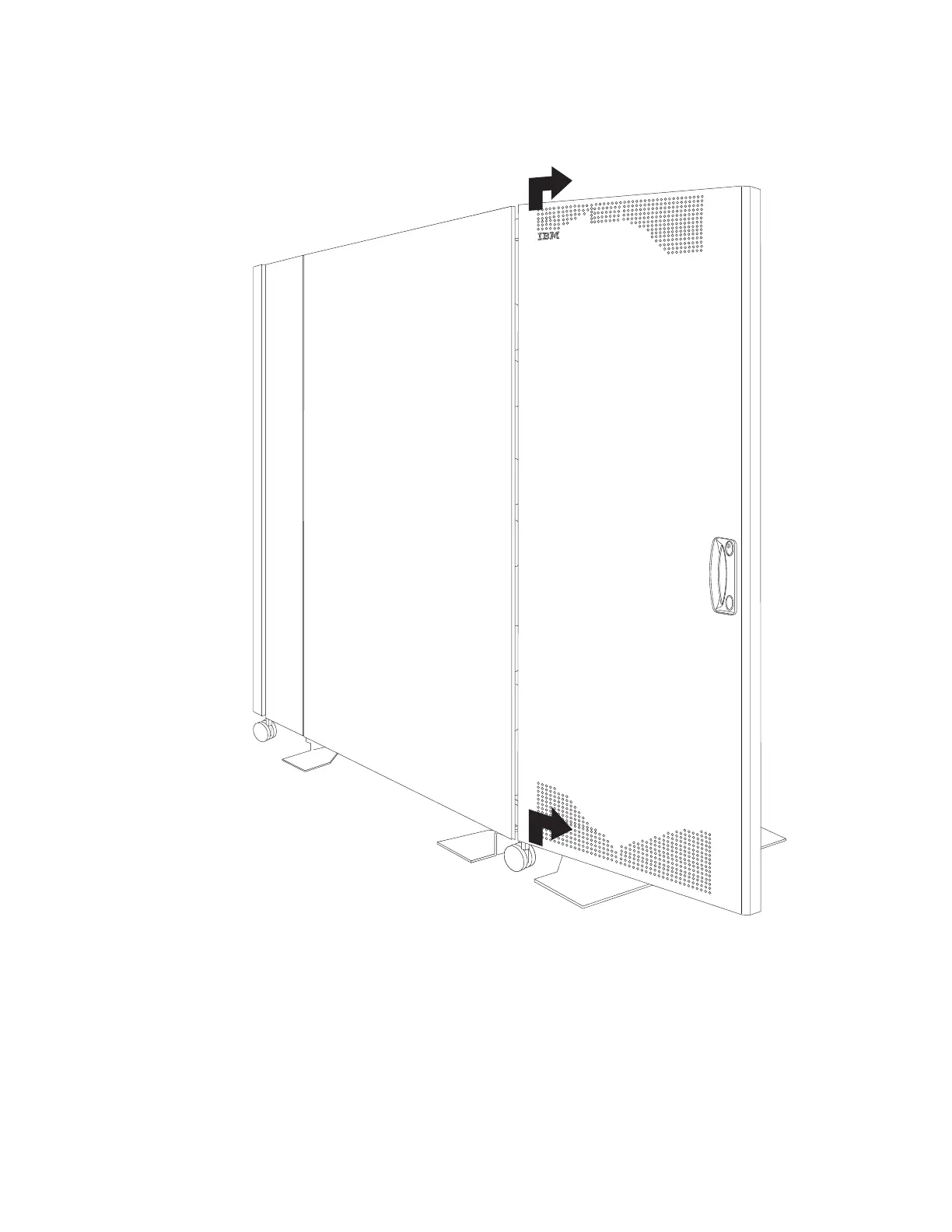

Figure 13. Removing a front door from the NetBAY42 rack cabinet
18 Hardware Maintenance Manual: IBM PC Server/Enterprise Racks Types 9306, 9308
