the slide rail kit; you must install these parts. Figure 12 on page 40 shows how the enclosure is
packaged for shipment.

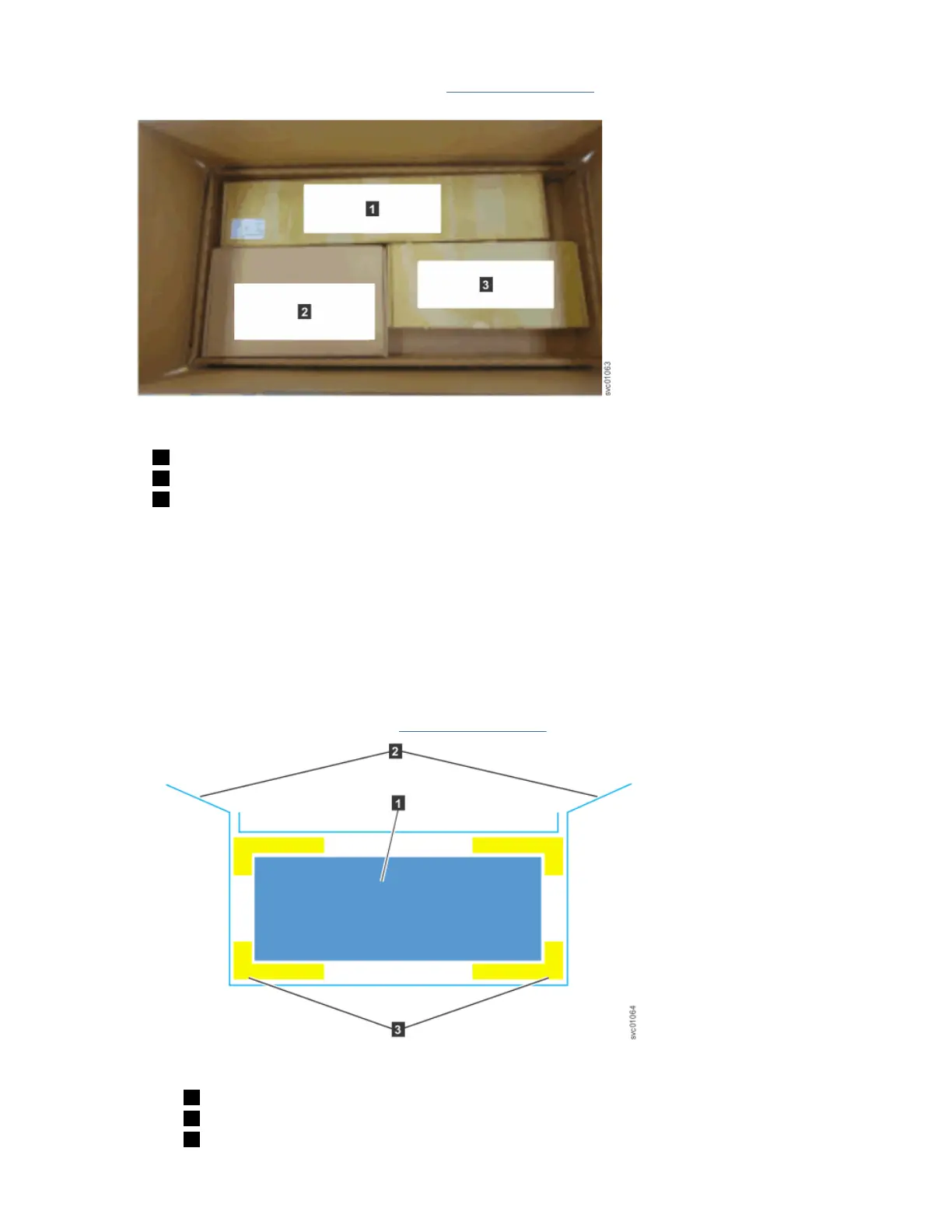

Figure 12. Tray containing expansion enclosure parts
1 Slide rail kit
2 Cable management arm
3 Fascia
Other parts, such as the cover, secondary expander modules, and fans, are installed in the enclosure.
However, due to weight considerations, you must remove some parts and then reinstall them as part of
the initial installation process.
Note: Drives are not included in installation package for the enclosure; they are provided in a separate
package.
1. Remove the cardboard tray that contains the slide rails, cable management arm, and fascia from
cardboard box in which the expansion enclosure was shipped.
2. Remove the foam end pieces from the top of the Model 092 expansion enclosure.
3. Cut the corners of the shipping box and fold them down to uncover the sides and faces of the
expansion enclosure, as shown in Figure 13 on page 40.
Figure 13. Packaging materials
1 Enclosure
2 Top of shipping box, folded back.
3 Foam protectors
40
