Note: To remove the cover, you might find it easier to lay the computer on its side.
The illustrations in this document might differ slightly from your hardware.

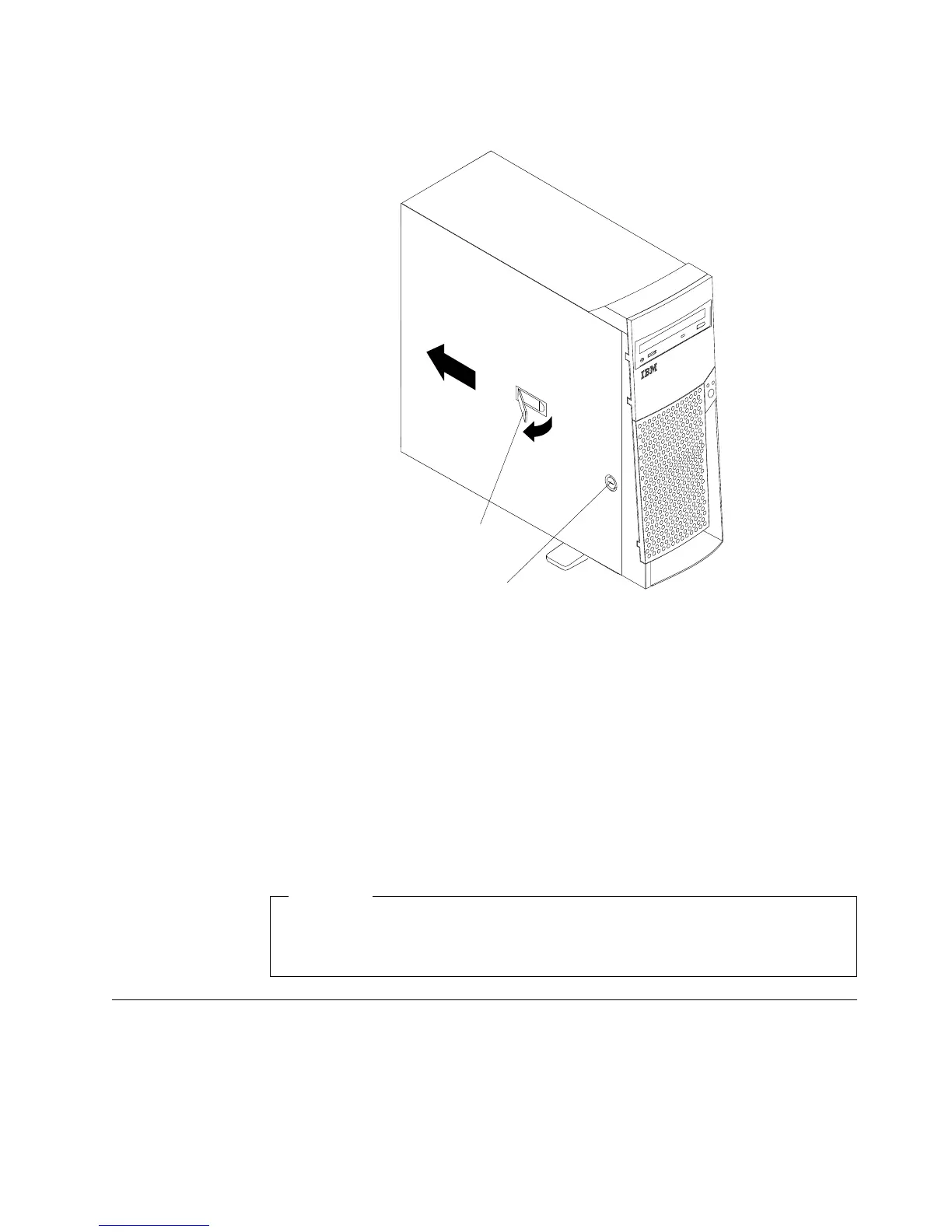

Key lock
Cover-release
latch
Do the following to remove the side cover of the computer:
1. Review the information in “Installing adapters-before you begin” on page 29
and “Safety Information” on page vii.
2. Turn off the computer and all attached devices.
3. Disconnect all external cables and power cords.
4. Unlock the computer cover, if necessary.
5. While pressing on the top blue button, pull out the cover-release latch and lock
it into an upright position. This action will slide the cover toward the rear of
the computer about 12.7 mm (0.5 in.). Then, remove the cover from the
computer.
To replace the side cover, see “Replacing the cover” on page 43.
Attention
For proper cooling and airflow, replace the cover before turning on the
computer. Operating the computer with the cover removed might damage
computer components.
Removing the support bracket
When working with some options, such as hard disk drives, and memory modules,
you must first remove the support bracket to access the existing option.
Chapter 5. Installing Options 31
