Note: Because of the placement of the adapter support brackets, you might find it
easier to lay the computer on it side with the cover lock facing you.
Note: If you removed the support bracket, reinstall it before you replace the cover.
See “Removing the support bracket” on page 31 for details.
Do the following to replace the computer cover:
1. Clear any cables that might impede the replacement of the cover.

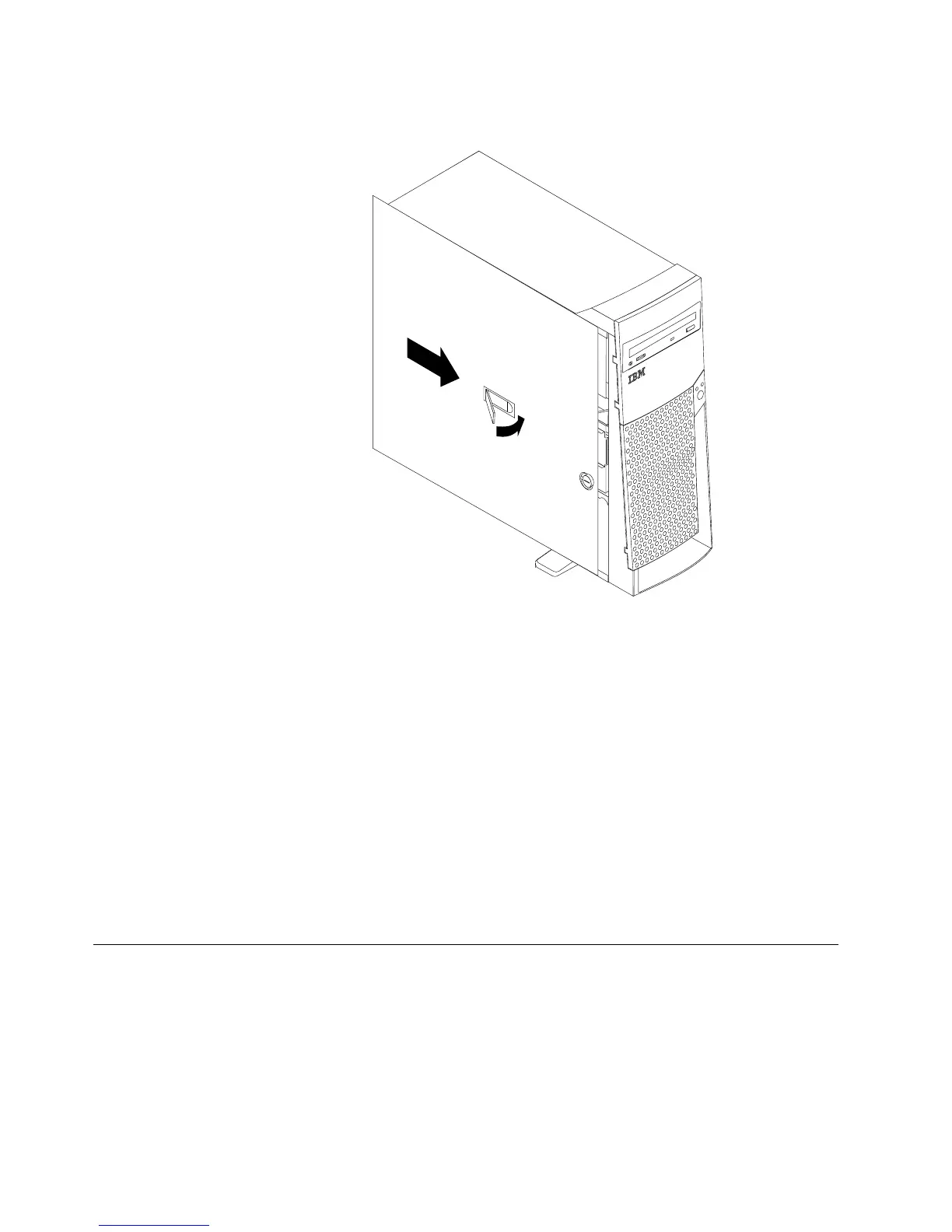

2. Install the side cover by placing it into position on the computer. Be certain the
notches on the underside of the cover match up to the holes along the sides of
the computer. Press down on the cover release latch button as you close the
cover release latch to lock the cover.
3. If you have not done so already, make sure that the two front stabilizing feet
are rotated outward so that they properly support the computer. Rotate each
individual foot outward 90 degrees.
4. Reconnect the external cables and power cords to the computer; then connect
the power cords to electrical outlets.
5. Turn on the attached devices; then turn on the computer.
Connecting external devices
You can attach several external devices to your computer.
Installation procedure
To attach an external device:
1. Be sure your computer and all attached devices are turned off.
2. Read “Installing adapters-before you begin” on page 29 and the documentation
that comes with your options.
44 IntelliStation M Pro: User Guide
