Table 34 shows LED descriptions.
Table 34. PS700 LEDs
Callout Base unit LEDs
1 3V lithium battery LED
2 DIMM 1-4 LEDs
3 Management card LED
4 Light path power LED
5 System board LED
6 HDD1 LED
7 Interposer LED
8 CIOv (1Xe) expansion card connector LED
9 High-Speed (CFFh) expansion card connector LED
10 HDD2 LED
11 DIMM 5-8 LEDs
Light path diagnostics LEDs
Light path diagnostics is a system of LEDs on the control panel and on the system board of the blade
server. When an error occurs, LEDs are lit throughout the blade server. If the control panel indicates an
error, use the descriptions of the LEDs to diagnose the problem and take corrective action.

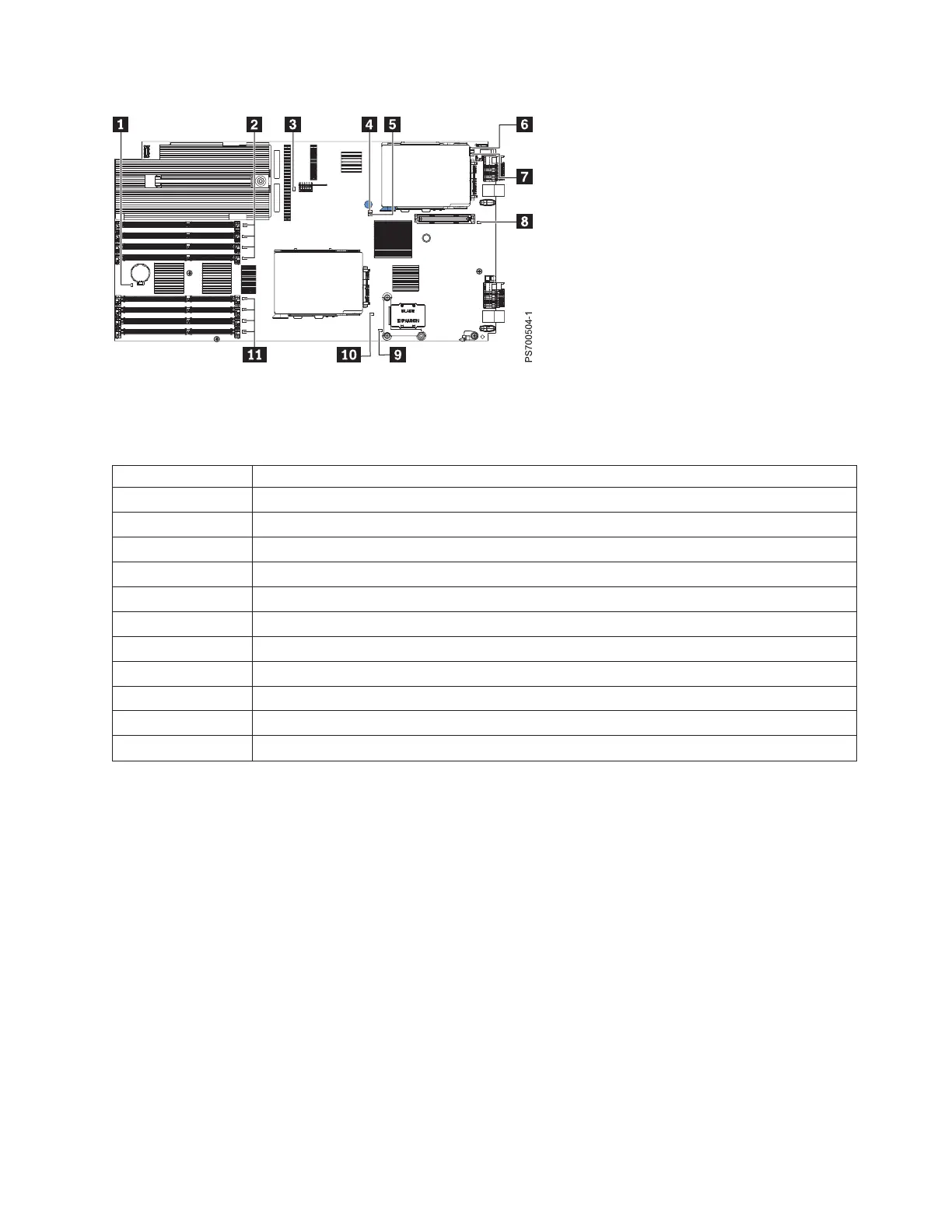

Figure 6. LED locations on the system board of the PS700 blade server
Chapter 2. Diagnostics 215
To Next Page
