IBM Power PS700 Problem Determination And Service Guide

1. Connect the control-panel cable (1 in Figure 13) to the control-panel connector (2) on the system
board.
2. Carefully slide the bezel assembly (4) onto the blade server until the two bezel-assembly releases
(3) click into place in the bezel assembly.
3. Install and close the blade server cover. See “Installing and closing the blade server cover” on page
239.
Statement 21
CAUTION:
Hazardous energy is present when the blade server is connected to the power source. Always
replace the blade server cover before installing the blade server.
4. Install the blade server into the BladeCenter unit. See “Installing the blade server in a BladeCenter
unit” on page 236.
Removing a drive
You can remove the SAS hard disk drive.

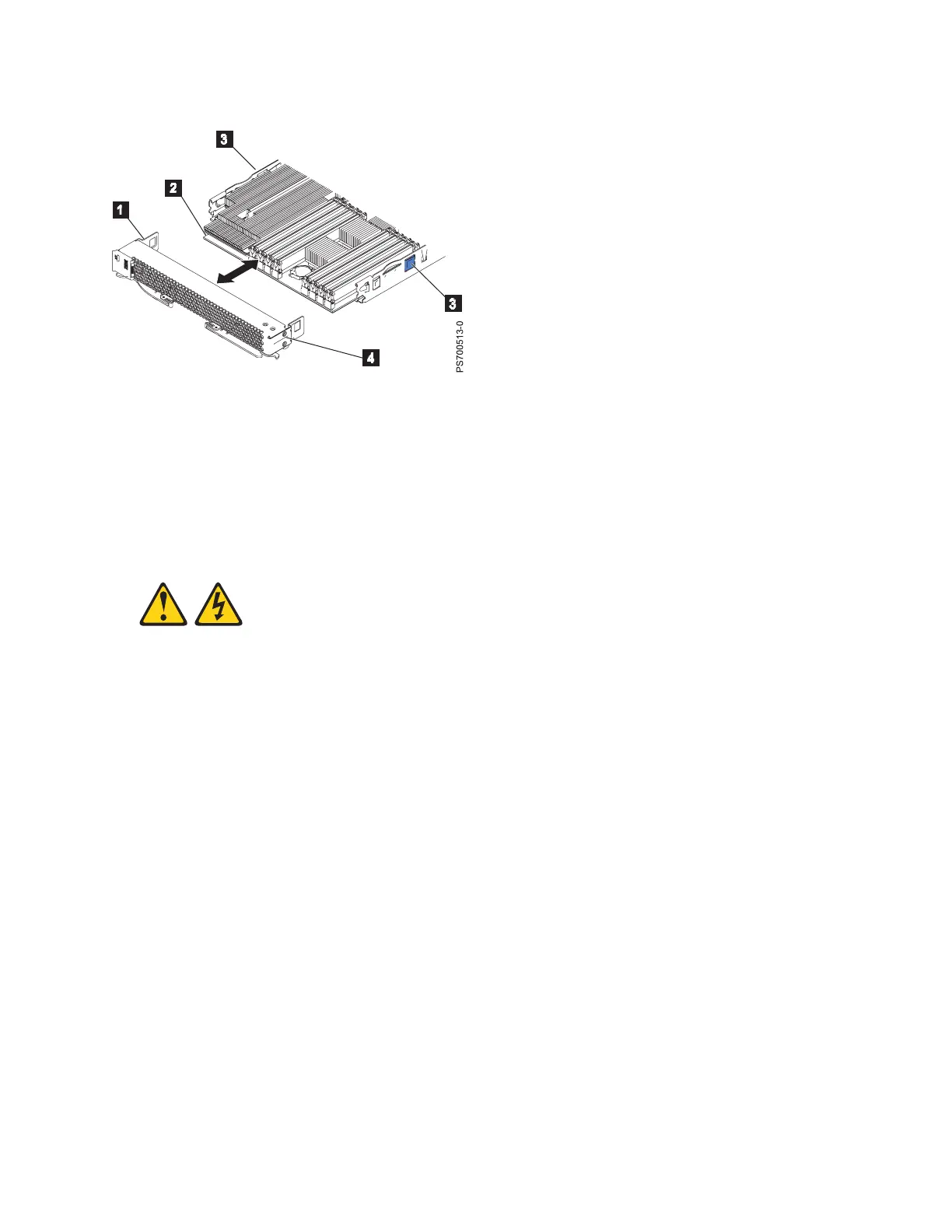

Figure 13. Installing the bezel assembly
Chapter 4. Removing and replacing blade server components 241
