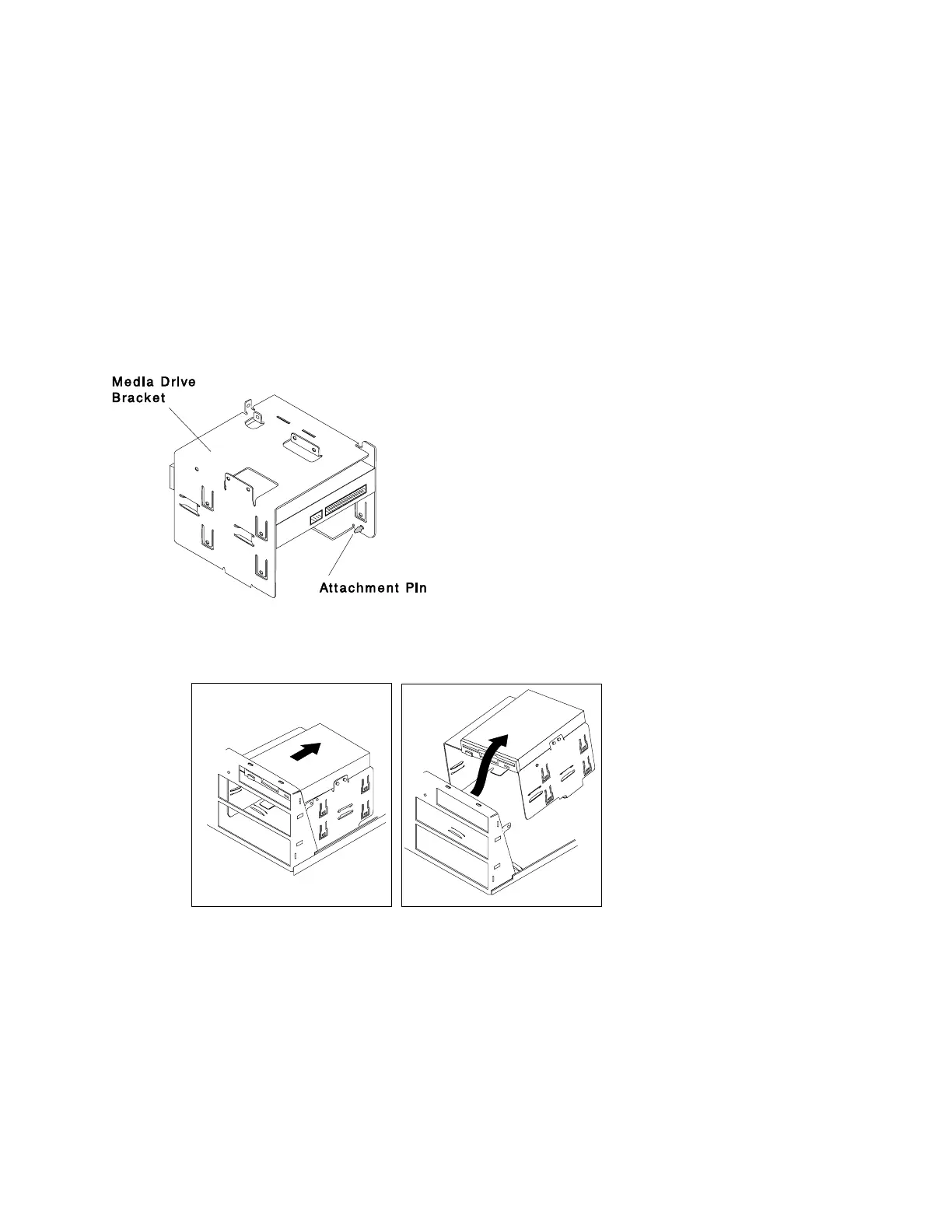

3. Snap off the media drive bracket attachment pin located at the left rear corner of
the media drive bracket.
4. Remove the screw which secures the media drive bracket to the side of the
chassis, then remove the media drive bracket assembly.
5. Remove the screws which secure the media or disk drive within the media drive
bracket.
8-16 7043 43P Series Service Guide
