Processor Card (for the Model 240)
Removal
1. If you have not already done so, remove the covers as described in “Cover” on
page 8-3.
2. Do the removal procedure under “Adapter” on page 8-19 as necessary.

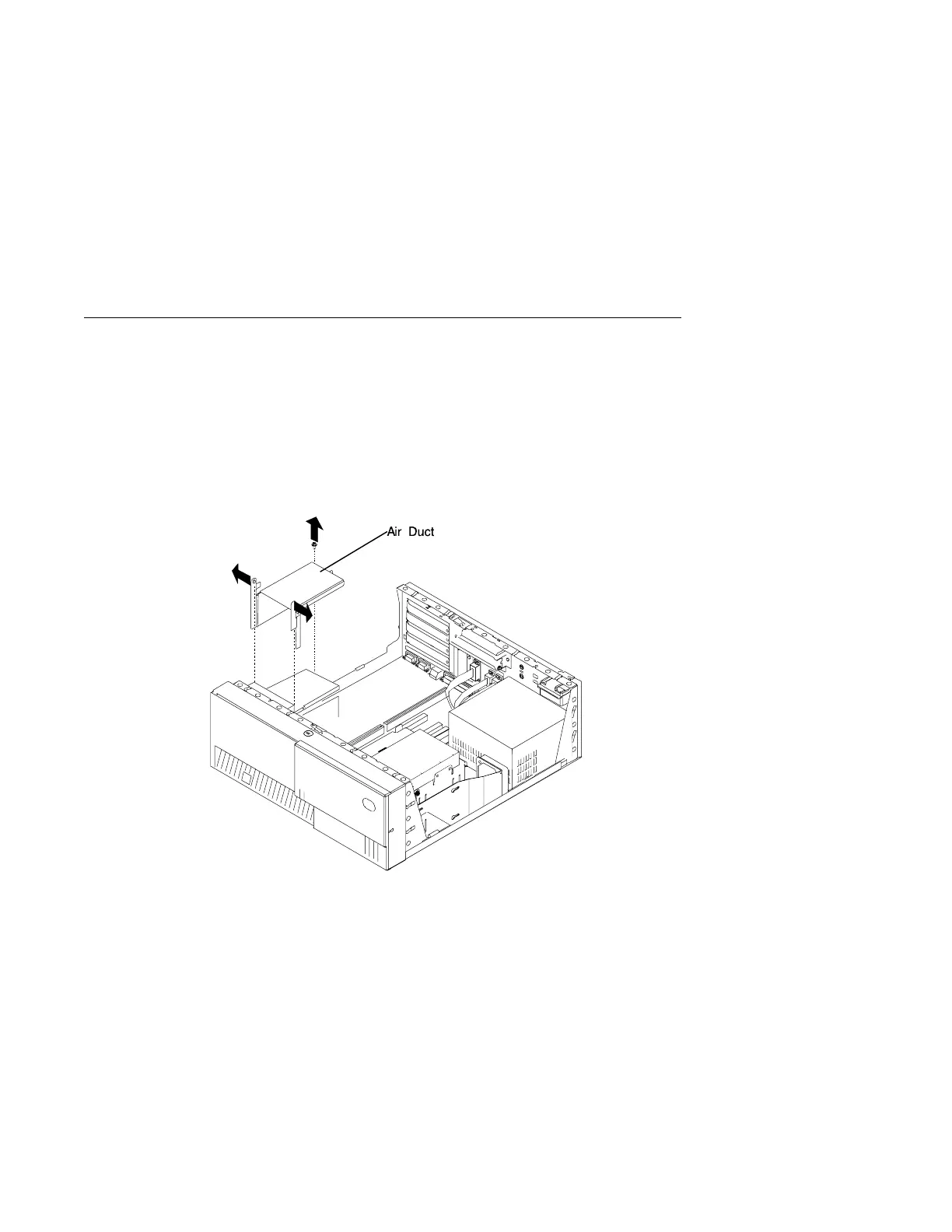

3. Remove the screw that holds the air duct to the system board.
4. Spread the arms on the air duct and remove it from the system.
8-24 7043 43P Series Service Guide
