I/O Panel
Removal
1. If you have not already done so, remove the covers as described in “Cover” on
page 8-3.
2. Disconnect the following cables from the system board:
Serial Port 1
Serial Port 2
Tablet Port (2 connectors in some Model 140 systems)
Ethernet AUI

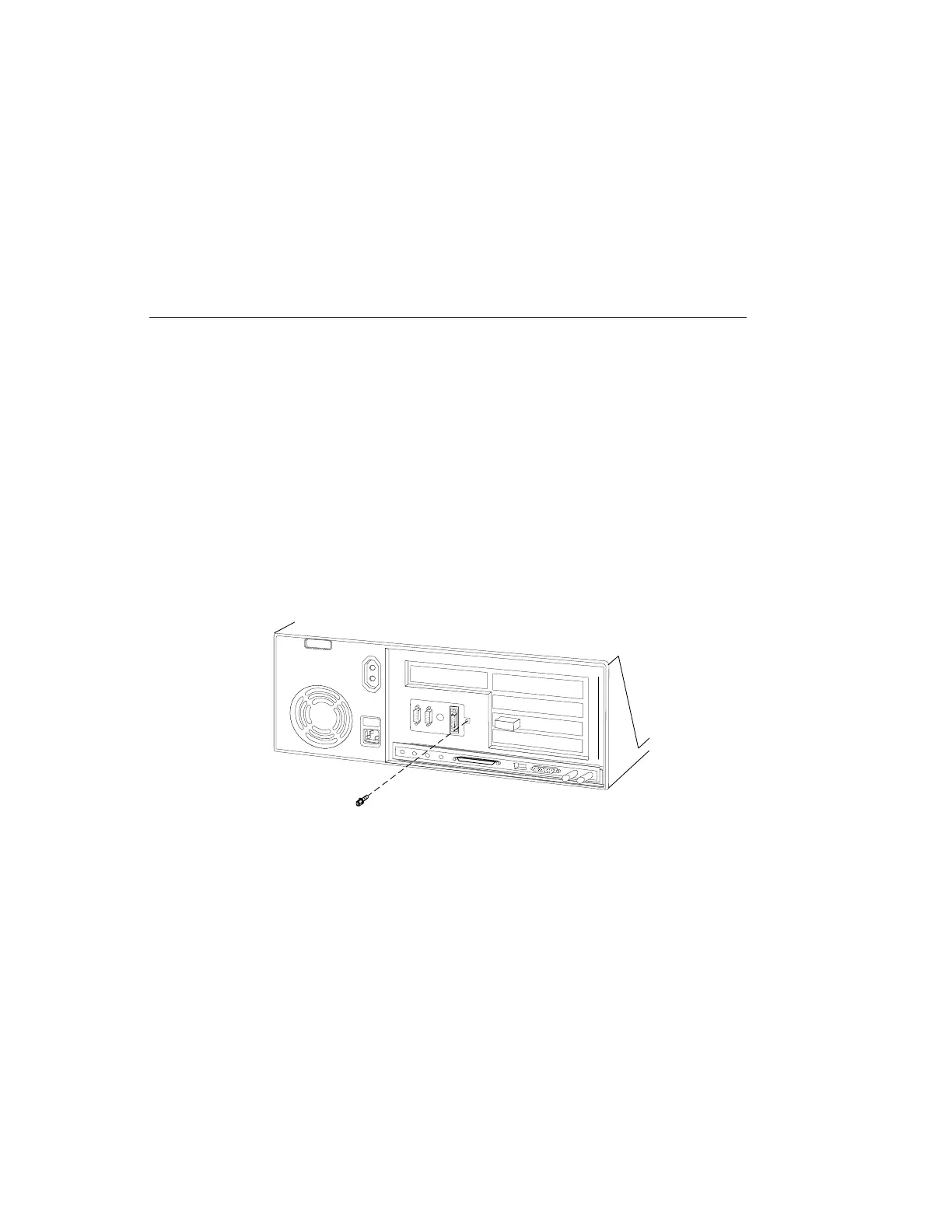

3. Remove the screw securing the I/O panel to the rear of the chassis.
Replacement
Replace in the reverse order.
If the replacement I/O panel has a second connector on the tablet cable, refer to
“System Board Locations (for Model 140)” on page 1-9 for the connector locations.
Chapter 8. Removal and Replacement Procedures 8-39
