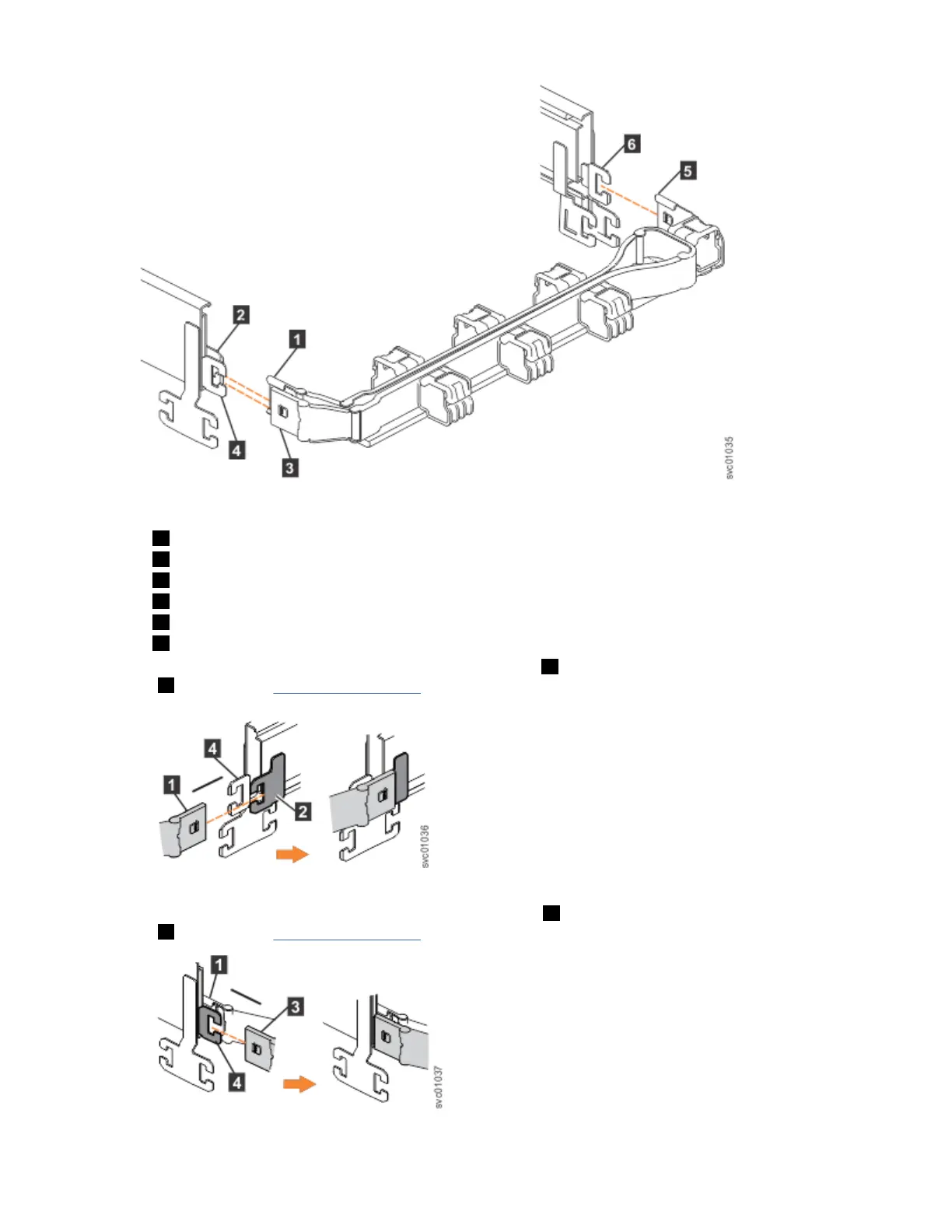

Figure 73. Connectors for the cable management arm
1 Inner connector on upper CMA
2 Connector base on inner rail member
3 Outer connector on upper CMA
4 Connector base on outer rail member
5 Support rail connector on upper CMA
6 Connector base on outer rail member
2. Install the inner connector of the upper CMA assembly ( 1 ) to the inner member of the left support rail
( 2 ), as shown in Figure 74 on page 70.
Figure 74. Install the inner connector of the upper CMA to the inner member of the support rail
3. Install the outer connector of the upper CMA assembly ( 3 ) to the outer member of the left support rail
( 4 ), as shown in Figure 75 on page 70.
Figure 75. Install the outer connector of the upper CMA to the outer member of the support rail
70
SAN Volume Controller : Model 2145-SV1 Hardware Installation Guide
