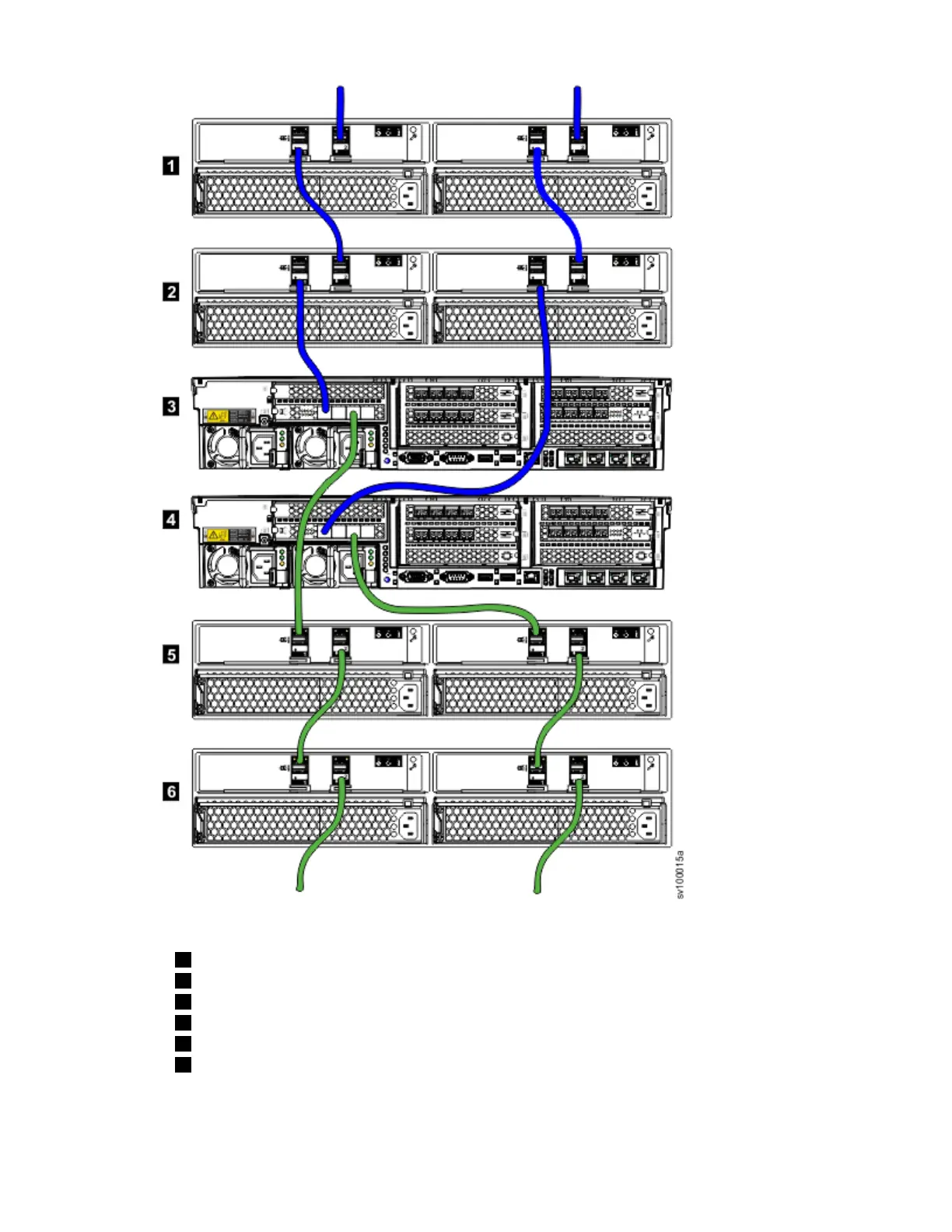

Figure 43. Connecting the SAS cables
1 2145-24F or 2145-12F SAS expansion enclosure
2 2145-24F or 2145-12F SAS expansion enclosure
3 2145-SV1 with SAS adapter in PCIe expansion slot 2
4 2145-SV1 with SAS adapter in PCIe expansion slot 2
5 2145-24F or 2145-12F SAS expansion enclosure
6 2145-24F or 2145-12F SAS expansion enclosure
2. If more I/O groups are congured, repeat the cabling procedure for the other I/O groups. The system
supports up to four I/O groups with a total of 80 expansion enclosures per system.
