IBM SAN Volume Controller 2145-SV1 - Installing the Rail Assembly to the Rack Frame

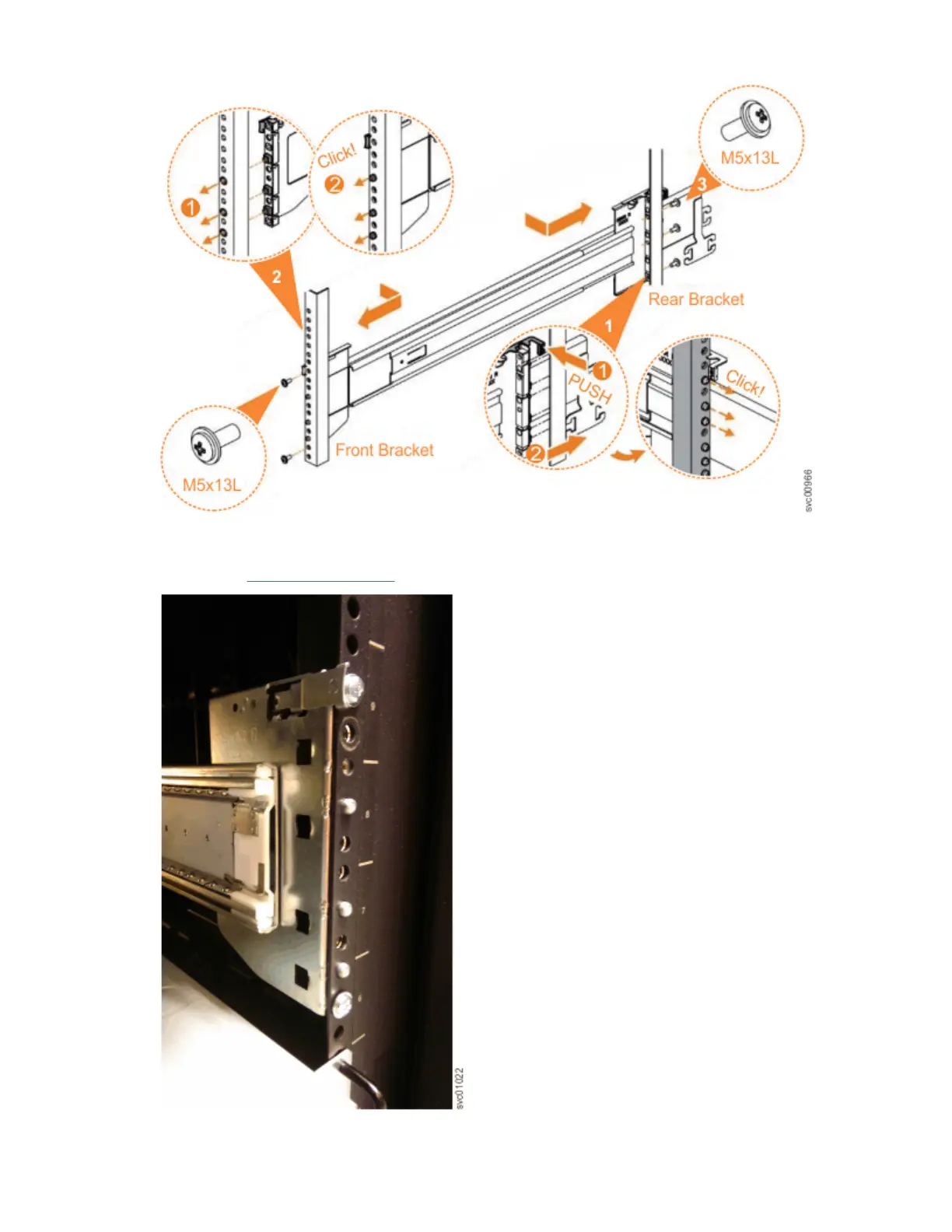

Figure 58. Installing the rail assembly to the rack frame
For example, Figure 59 on page 60 shows the front of the rail that is attached to the frame.
Figure 59. Example of the required rack space
60
SAN Volume Controller : Model 2145-SV1 Hardware Installation Guide
