IBM SAN Volume Controller 2145-SV1 User Manual

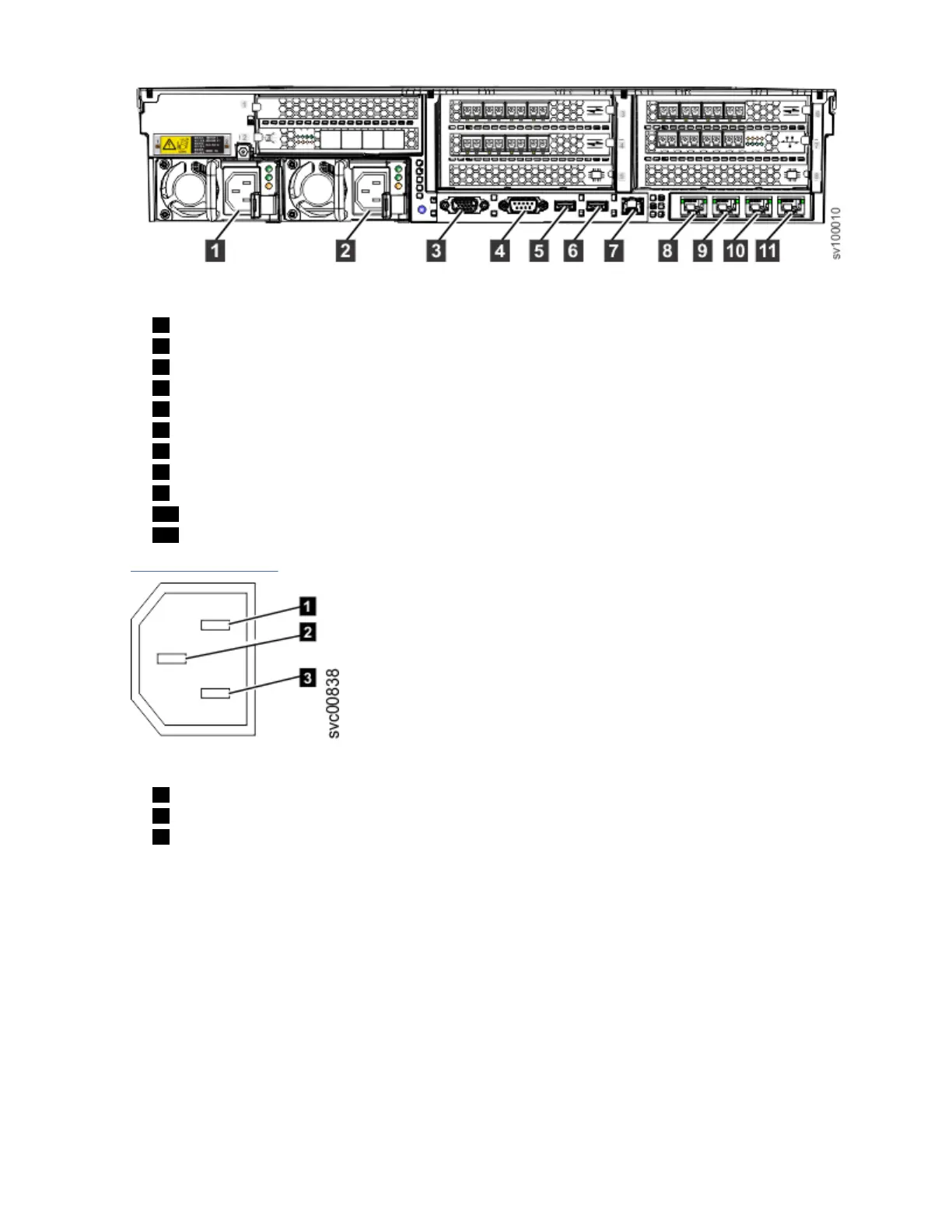

Figure 13. Connectors on the rear of the SAN Volume Controller 2145-SV1
1 Power supply 1
2 Power supply 2
3 Video port
4 Serial port (not used)
5 Rear USB port 1
6 Rear USB port 2
7 Unused Ethernet port
8 10 Gbps Ethernet port 1
9 10 Gbps Ethernet port 2
10 10 Gbps Ethernet port 3
11 Technician port (Ethernet)
Figure 14 on page 12 shows the type of connector that is on each power-supply assembly.
Figure 14. Power connector
1 Neutral
2 Ground
3 Live
Note: Optional host interface adapters provide extra connectors for 10 Gbps Ethernet, Fibre Channel, or
SAS.
SAN Volume Controller 2145-SV1 ports used during service procedures
The SAN Volume Controller 2145-SV1 contains a number of ports that are used during service
procedures.
The following gure shows ports that are used during service procedures.
12
SAN Volume Controller : Model 2145-SV1 Hardware Installation Guide
