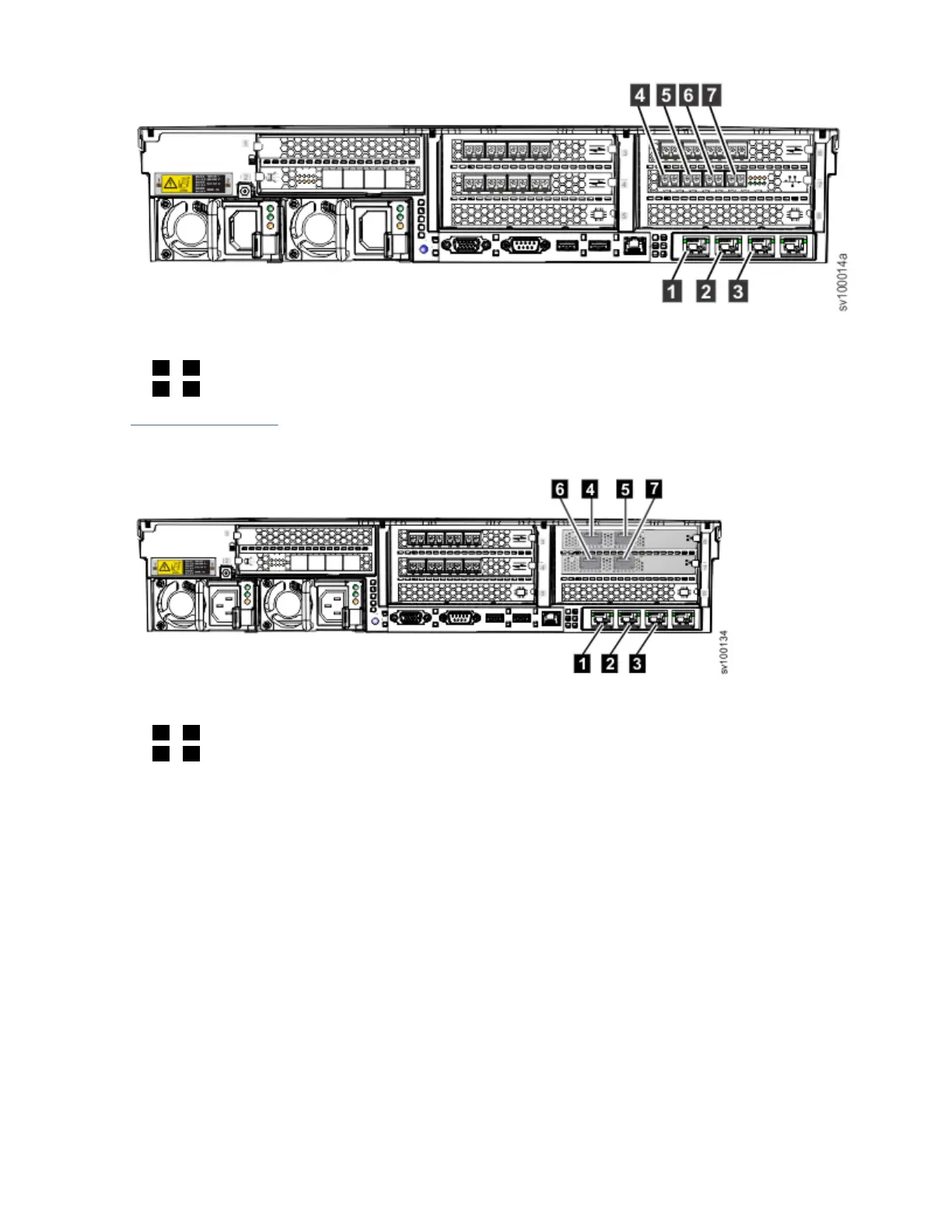

Figure 18. Ethernet port numbers for iSCSI communication (10 Gbps Ethernet adapter)
1 - 3 10 Gbps Ethernet ports 1-3 (onboard)
4 - 7 10 Gbps optical Ethernet ports 4-7
Figure 19 on page 15 shows the Ethernet port numbers for the SAN Volume Controller 2145-SV1 when
two 2-port 25 Gbps Optical Ethernet (RoCE) adapters are congured. Ethernet ports 4 and 5 are located
in the Ethernet adapter that is installed in the lowest PCIe expansion slot number.
Figure 19. Ethernet port numbers for 25 Gbps adapter
1 - 3 10 Gbps Ethernet ports 1-3 (onboard)
4 - 7 25 Gbps optical Ethernet ports 4-7
Chapter 1. Preparing to install the system
15
