Installing support rails for the control enclosures
Before you install the control enclosure into the rack, you must rst install the support rails for it.
Procedure
To install the support rails for the control enclosure, complete the following steps.
1. Locate the control enclosure rails, as shown in Figure 8 on page 13.
The rail assembly consists of two rails that must be installed in the rack cabinet.

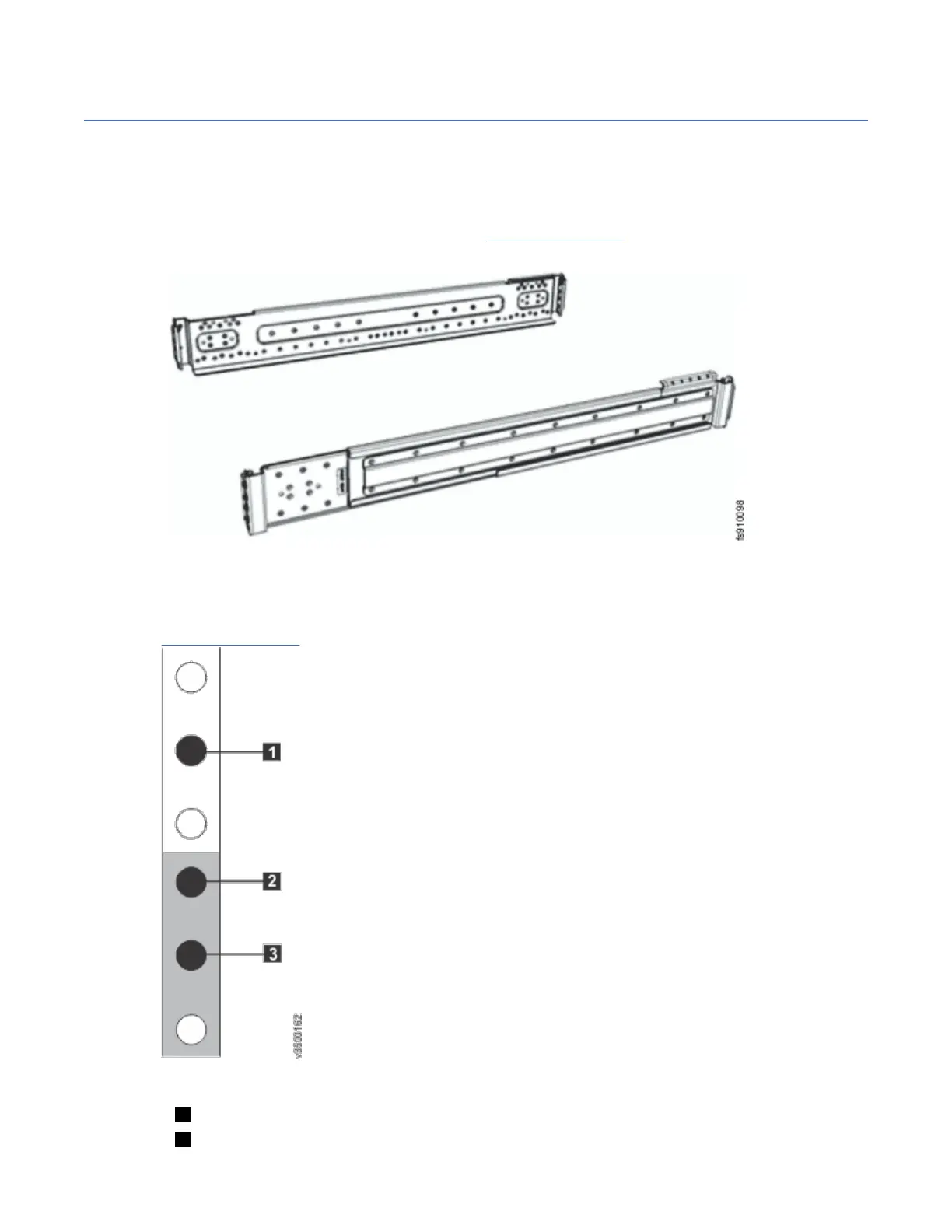

Figure 8. Control enclosure support rails
2. Working at the front of the rack cabinet, identify the two standard rack units (2U) of space in the rack
into which you want to install the support rails.
Figure 9 on page 13 shows two rack units with the front mounting holes identied.
Figure 9. Hole locations in the front of the rack
• 1 Upper rail-mounting bracket pin
• 2 Lower rail-mounting bracket pin
Chapter 2. Installing the system hardware
13
