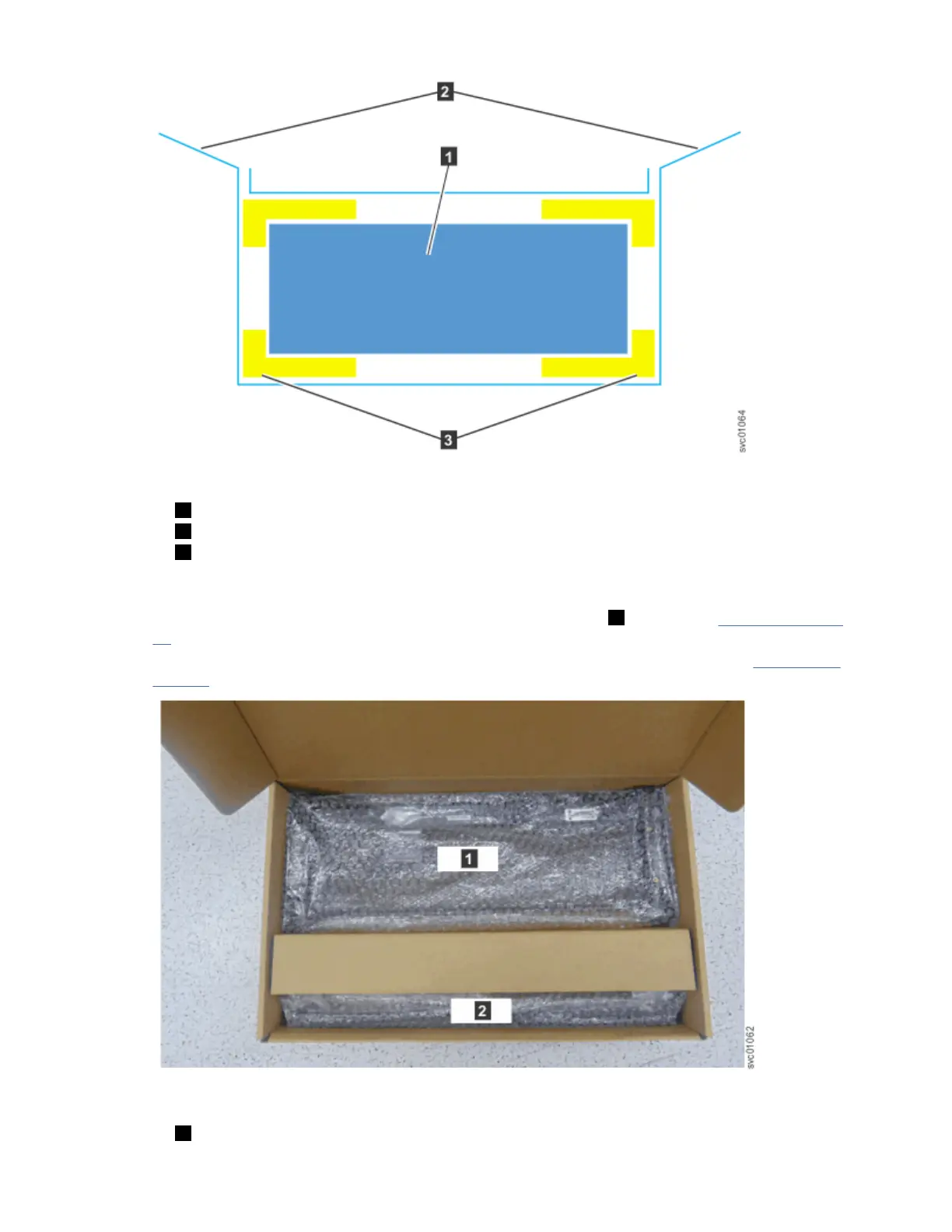

Figure 18. Packaging materials
1 Enclosure
2 Top of shipping box, folded back
3 Foam protectors
4. With four or more persons, push the expansion enclosure sideways onto an adjacent flat bed lift. Keep
the remaining foam block protectors attached to the enclosure.
5. Remove the support rail kit from the box in which it was shipped ( 1 , as shown in Figure 17 on page
21).
6. Remove the 4U and 1U fascia from the boxes in which they were shipped, as shown in Figure 19 on
page 22.
Figure 19. Packaging for fascia
1 4U fascia (front)
22
Storwize V5100 : Quick Installation Guide for MTM 2078-424, 2078-12F, 2078-24F, 2078-92F, and 2078-
U5B
