IBM Storwize V5100 MTM 2078-424 - Example Installation of the Enclosure in the Rack

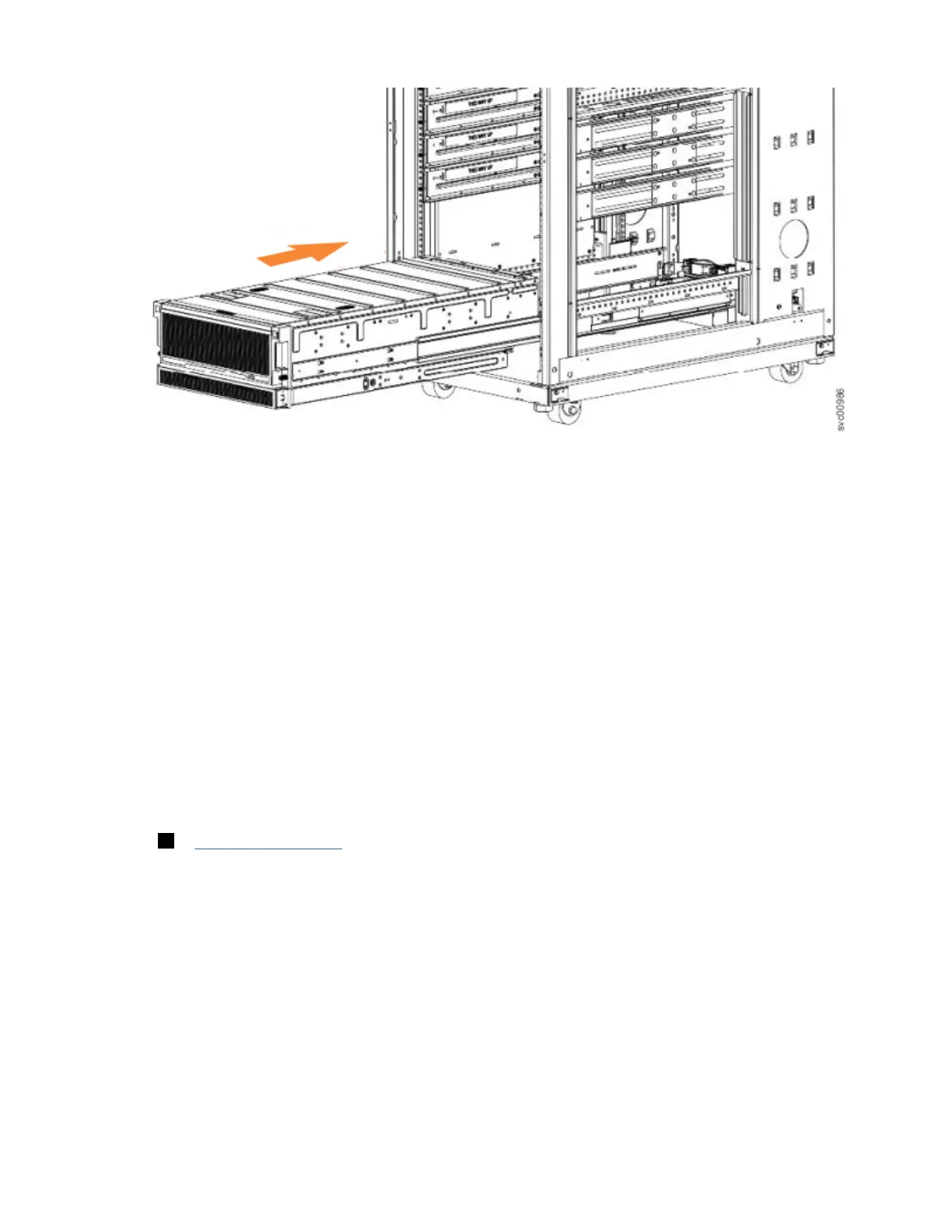

Figure 46. Example installation of the enclosure in the rack
• Ensure that the drives are easily accessible. Avoid installing the 2077-92F, 2077-A9F expansion
enclosure above position 22U in the rack.
If you are reinstalling the expansion enclosure in the rack after you performed a service task (for example,
replacing the enclosure), you must also perform the following tasks:
• Reinstall all of the following parts:
– Cover
– Drives
– Fan modules
– Power supply units and 1U fascia
– Secondary expander modules
– Expansion canisters (and SAS cables)
• Reconnect both power cables to the expansion enclosure.
Procedure
1. Fully extend the left and right drawer sections from the rack to lock the rails in the extended position
( 1 in Figure 47 on page 51).
50
