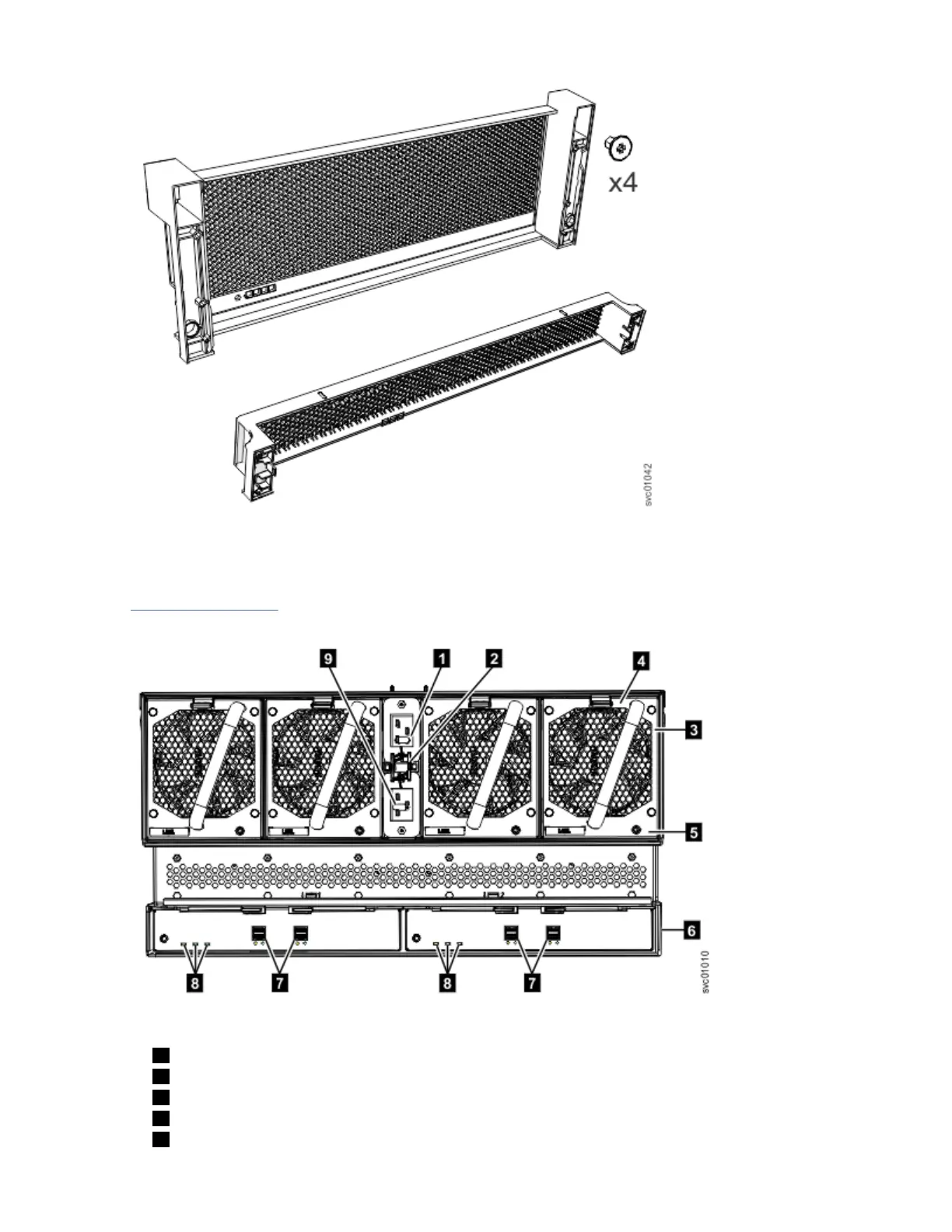

Figure 21. Front fascia of the 2077-92F, 2077-A9F expansion enclosure

Components on the rear of the enclosure

Figure 22 on page 33 shows the components on the rear of the 2077-92F, 2077-A9F expansion

enclosure. Four fan modules and two expansion enclosures are accessible from the back of the enclosure.

Figure 22. Features on the rear of the 2077-92F, 2077-A9F expansion enclosure

1 Power cable connector for PSU 2

2 Power cable retention clamps

3 Fan module

4 Fan release latch

5 Fan fault indicator

Chapter 2. Installing the system hardware
