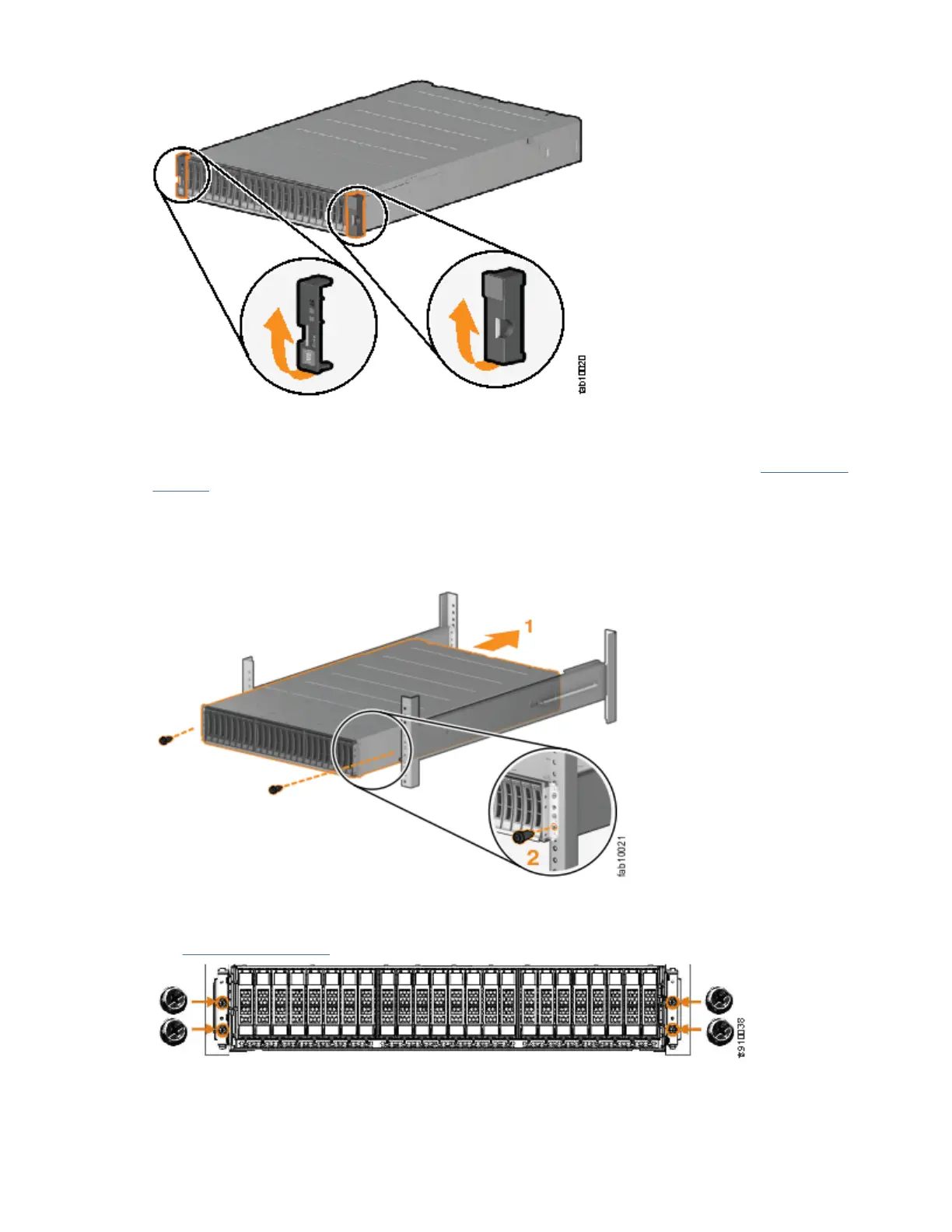

Figure 10. Removing enclosure end caps
2. Align the enclosure with the front of the rack cabinet.
3. Slide the enclosure into the rack along the rails until the enclosure is fully inserted. See Figure 11 on
page 15.
Note: The rails are not designed to hold an enclosure that is partially inserted. The enclosure must
always be in a fully inserted position. Control enclosures must be installed only on the supplied control
enclosure rails.
Figure 11. Inserting the enclosure
4. Secure the enclosure with screws in the rack mounting screw holes on each side of the enclosure.
See Figure 12 on page 15.
Figure 12. Securing the front of the enclosure
5. Reinstall the left and right end caps.
Chapter 2. Installing the system hardware
15
