About this task
The 2077-92F, 2077-A9F expansion enclosure supports 92 drives. Figure 38 on page 45 shows an
example of a drive assembly.

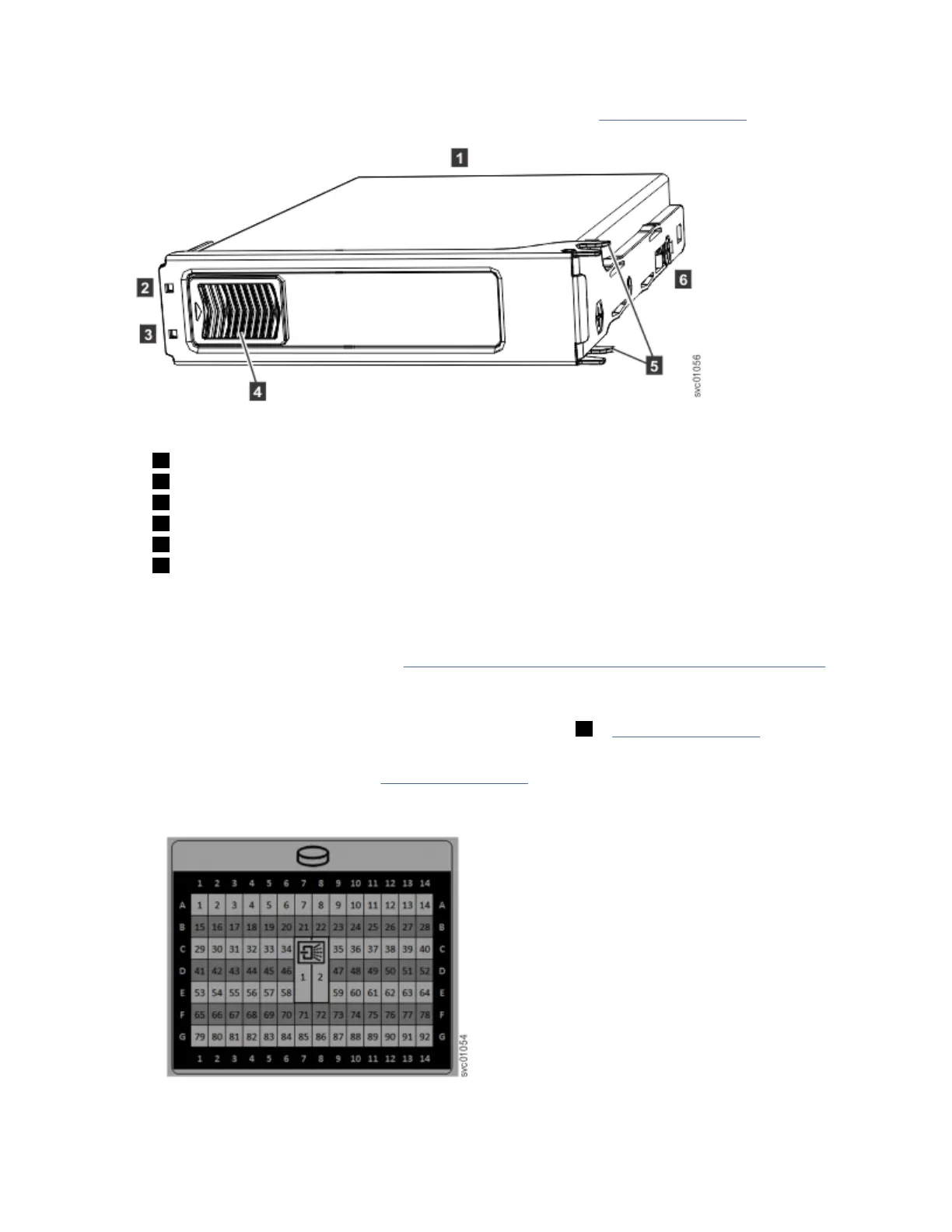

Figure 38. Drive assembly
1 Disk drive
2 Online indicator
3 Fault indicator
4 Release latch
5 Drive latch toes
6 Drive carrier
Procedure
1. Read all of the available safety information.
2. Remove the cover, as described in “Removing the top cover: 2077-92F, 2077-A9F ” on page 38.
3. Locate the empty drive slot to receive the new drive or that contains the faulty drive that you want to
replace.
Note: When a drive is faulty, the amber fault indicator is lit ( 3 in Figure 38 on page 45). Do not
replace a drive unless the drive fault indicator is on or you are instructed to do so by a x procedure.
A label on the enclosure cover (Figure 39 on page 45) shows the drive locations in the enclosure.
The drive slots are numbered 1-14 from left to right and A-G from the back to the front of the
enclosure.
Figure 39. Drive locations in a 5U expansion enclosure
Chapter 2. Installing the system hardware
45
