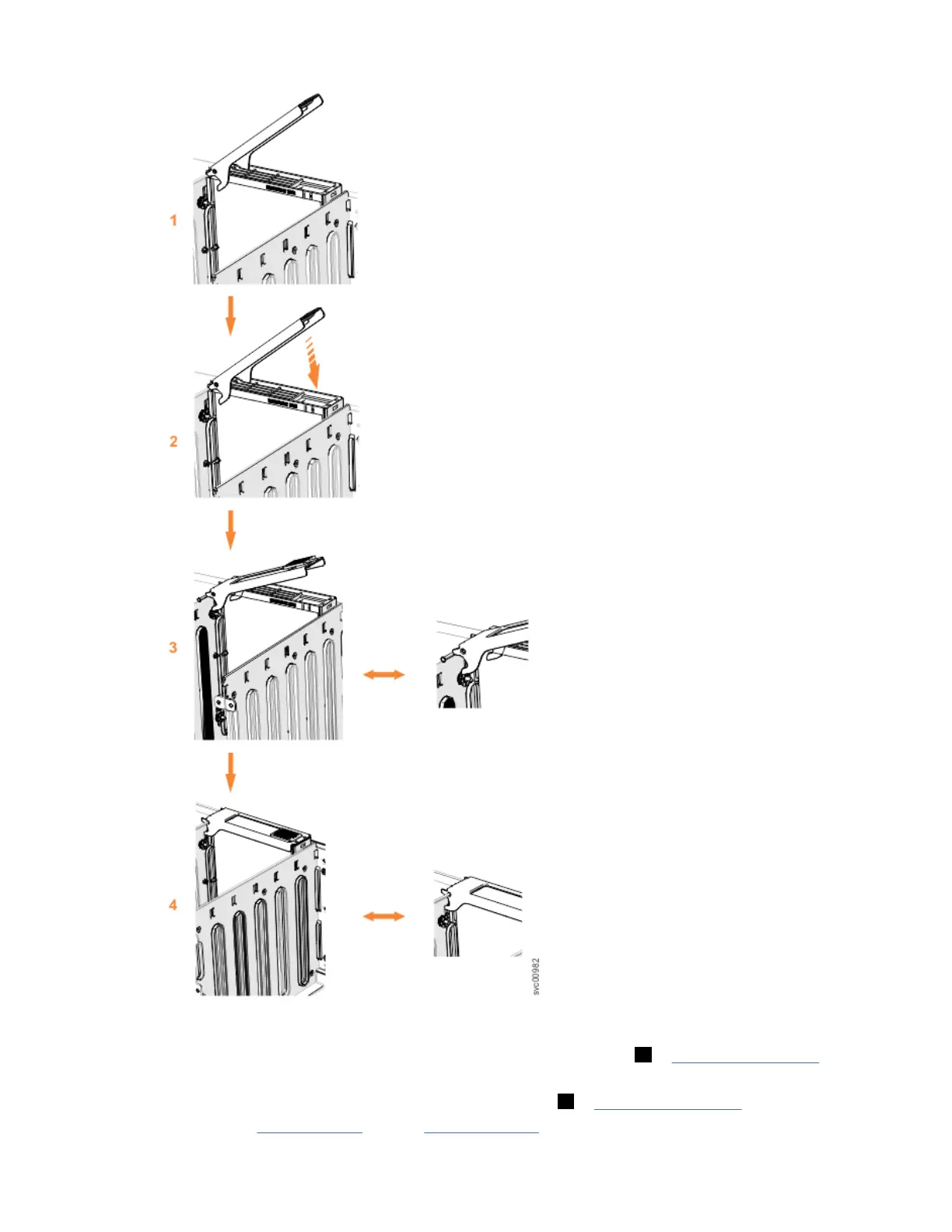

Figure 42. Replace the drive
8. Rotate the handle down to lock the drive assembly into the chassis ( 3 in Figure 42 on page 47).
9. Ensure the toe on the bottom of the latch is fully engaged with the partition in the chassis.
10. Ensure that the top toe of the latch is also fully engaged ( 4 in Figure 42 on page 47).
11. Repeat steps “4” on page 46 through “10” on page 47 for each drive you are replacing.
Chapter 2. Installing the system hardware
