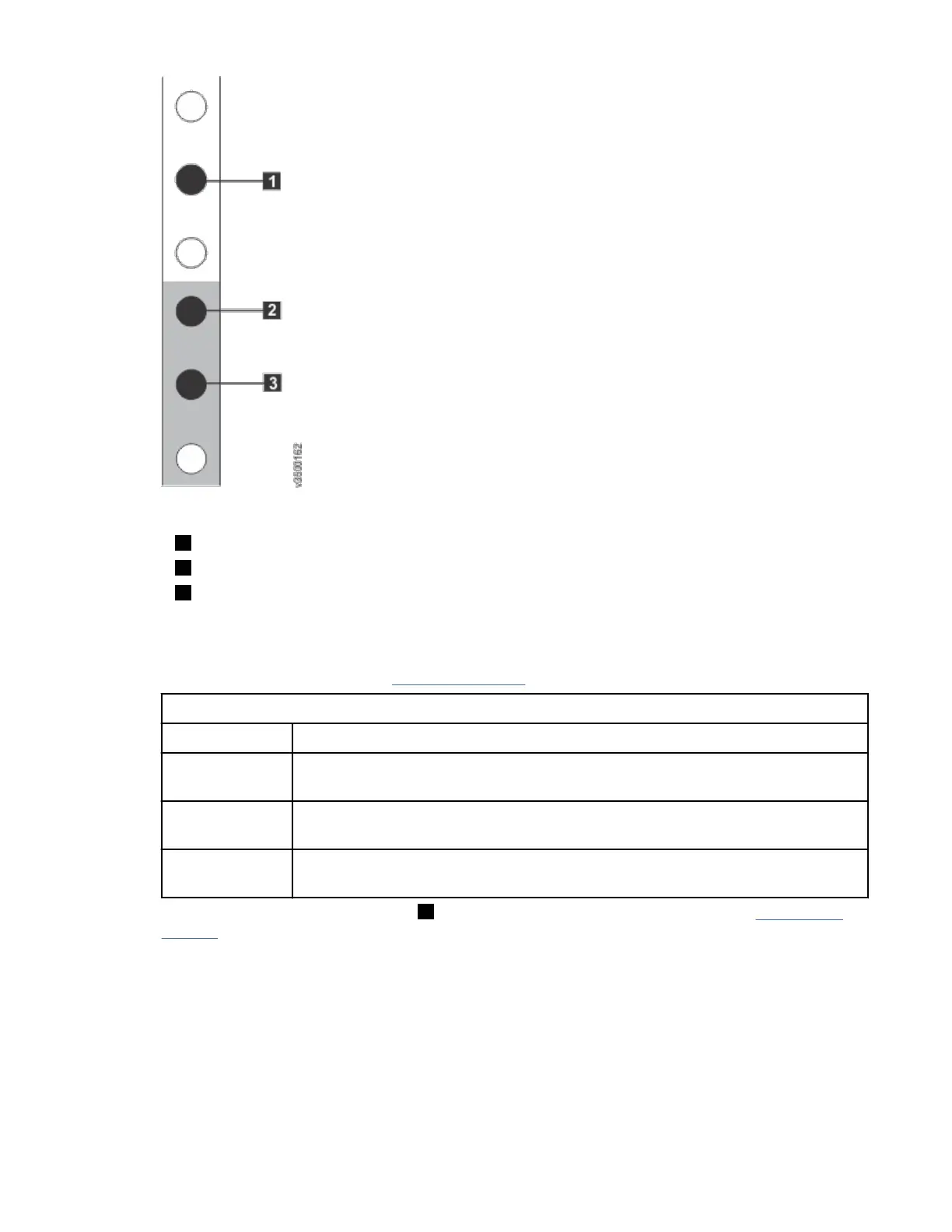

Figure 14. Hole locations in the front of the rack
• 1 Upper rail mounting bracket pin
• 2 Lower rail mounting bracket pin
• 3 Rack mounting screw hole
5. Ensure that the appropriate bracket pins are installed in the front and rear bracket of each rail.
Each rail comes with four medium pins preinstalled (two in the front bracket and two in the rear
bracket). Large and small pins are provided separately. Use the pins that are appropriate for the
mounting holes in your rack. See Table 7 on page 18.
Table 7. Selecting bracket pins for your rack
Mounting holes Bracket pins
Round,
unthreaded
Use the preinstalled medium pins.
Round, threaded Unscrew the medium pins and replace with the smaller pins that are supplied
with the rails.
Square Unscrew the medium pins and replace with the large pins that are supplied with
the rails.
6. At each end of the rail, grasp the tab 1 and pull rmly to open the hinge bracket (see Figure 15 on
page 19).
18
Storwize V5100 : Quick Installation Guide for MTM 2078-424, 2078-12F, 2078-24F, 2078-92F, and 2078-
U5B
