USB and base configuration

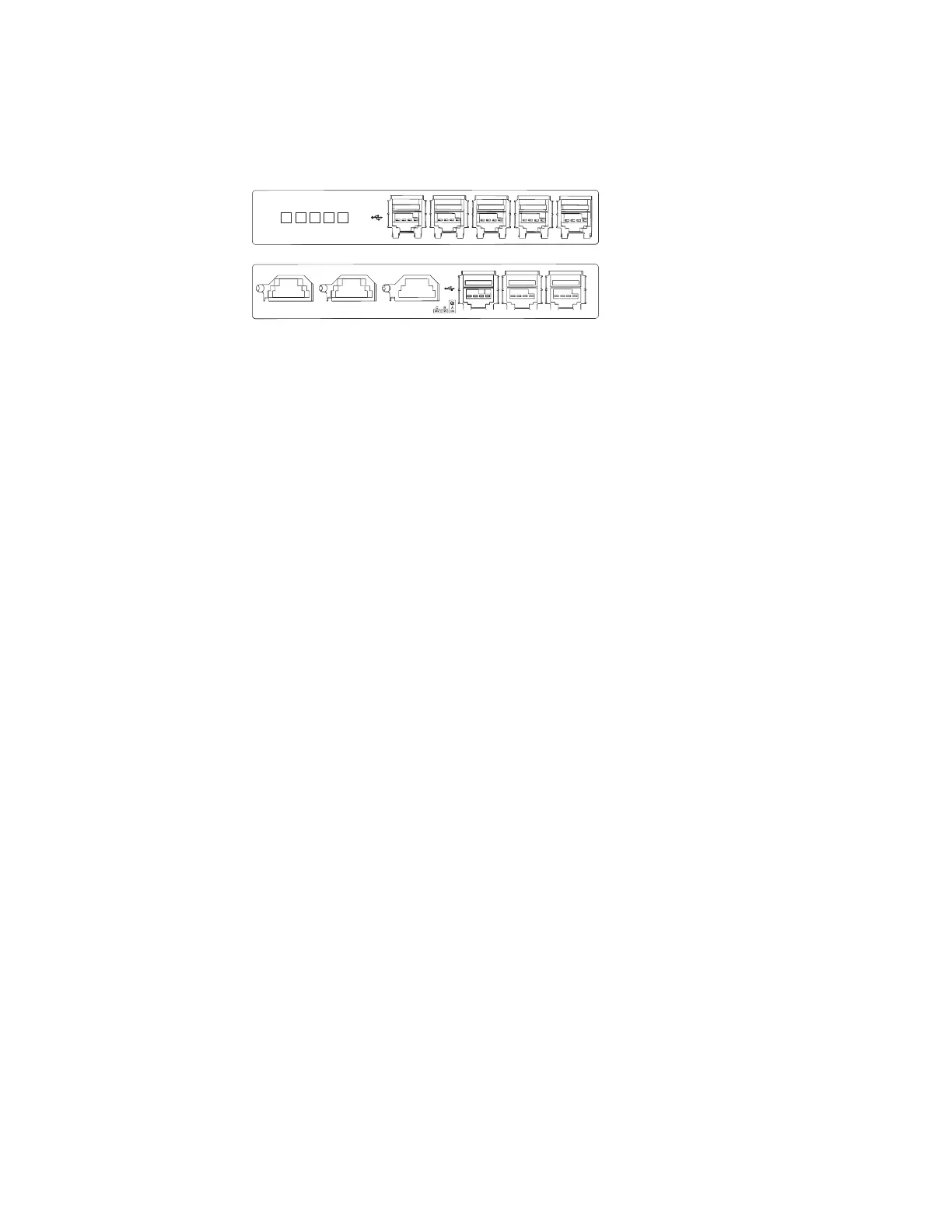

Figure 11 shows the USB SurePort adapter with the base SurePort adapter
configuration.
A, B, D, E, F, G, H
12 V powered USB ports
Note: The letters shown on the USB connectors are used to identify the
connector space and the order of connection per adapter card. As an
example, for each adapter card, the system first recognizes a device
connected to USB port A before recognizing the device connected to
USB port B. This autosensing feature applies to both adapter cards;
therefore, the system could recognize adapter card 1, USB port B,
then C, before recognizing the USB port D on adapter card 2.
C 24 V powered USB port
CD A (3A), CD B (3B)
IBM cash drawer ports
Note: Port 3A detects an IBM cash drawer automatically. If you use
non-IBM cash drawers, read the voltage considerations described in
“Cash drawers” on page 22.
9A RS-485 scanner or a secondary RS-485 display
Cooling
Cooling is provided through forced-air cooling by a fan contained in the power
supply and, in some cases, by a chassis fan. Air vents must not be blocked, and
the vents must have two inches of clearance from cabinet walls, trash cans, and
papers.
Environmental and temperature
The following environmental characteristics apply:
v Operating temperature: +10 to 40°C (+50 to 104°F) with 8% to 80% relative
humidity
v Shipping: -40 to +60°C (-40 to +140°F)
v Storage: 0 to +60°C (32 to +140°F)
CD B
CD A
9A
12V
G
HFED
Figure 11. USB and base configuration
16 SurePOS 700-723/743/783/784 Hardware Service Guide
