Installing a new internal modular flash drive for SurePOS 723, 743, and
783
To install an internal modular flash drive, open the cover and view the modular flash
drive location as illustrated on SurePOS models 743 or 783 (Figure 41), , or model
723 (Figure 42 on page 57).
Attach the modular flash drive pins to the system board connector.
Line up the pins on the board with the holes on the internal modular drive shown
(A in Figure 41 or B in Figure 42 on page 57) and the white peg at the opposite
end of the drive. There is a white stand-off pin that snaps through a hole on the
motherboard.
A

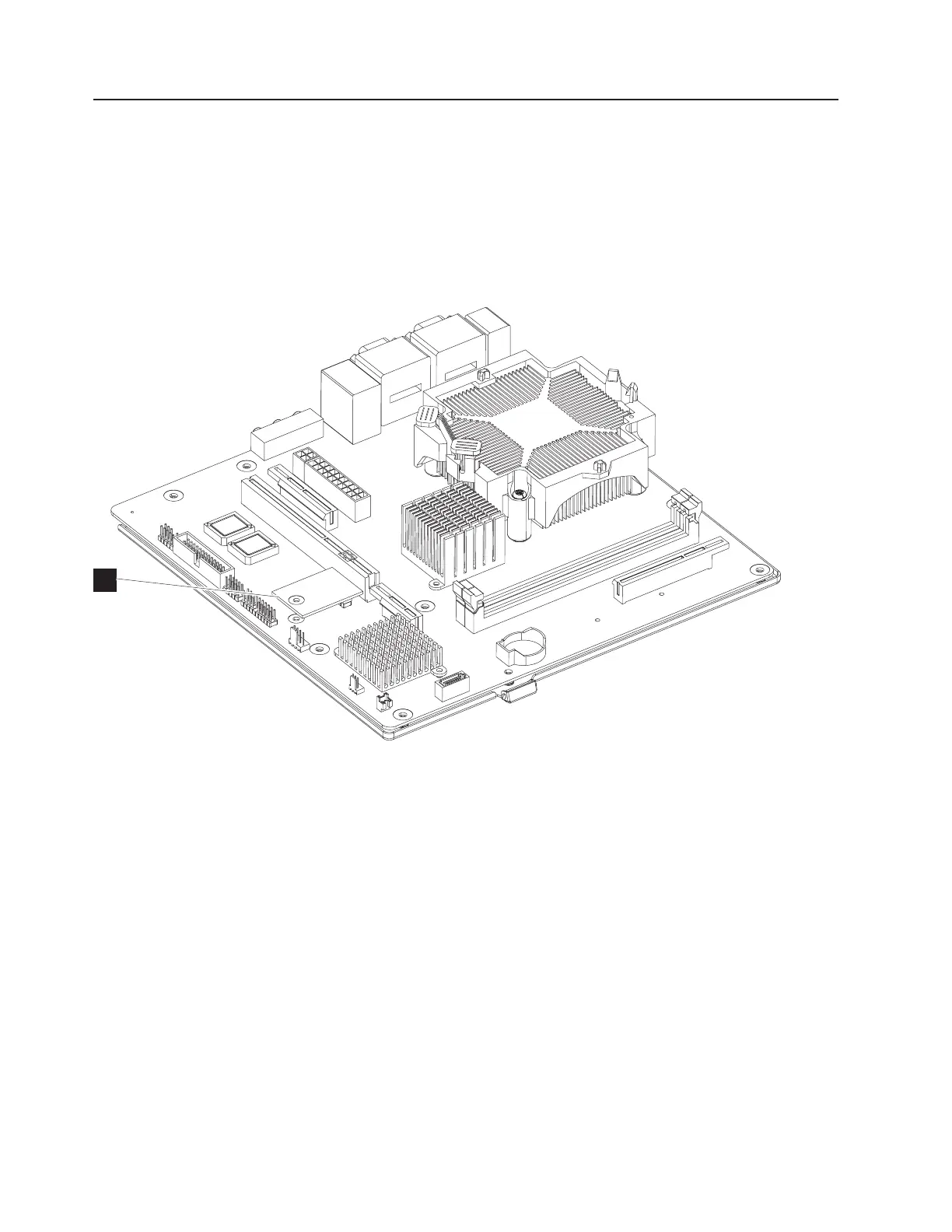

Figure 41. SurePOS 743 and 783 system board
56 SurePOS 700-723/743/783/784 Hardware Service Guide
